The exit plane of a 0.25-m-diameter pipe is partially blocked by a plane with a hole in it that produces a 0.12-m-diamet

Post by answerhappygod »

The Exit Plane Of A 0 25 M Diameter Pipe Is Partially Blocked By A Plane With A Hole In It That Produces A 0 12 M Diamet 1
The Exit Plane Of A 0 25 M Diameter Pipe Is Partially Blocked By A Plane With A Hole In It That Produces A 0 12 M Diamet 1 (208.9 KiB) Viewed 14 times

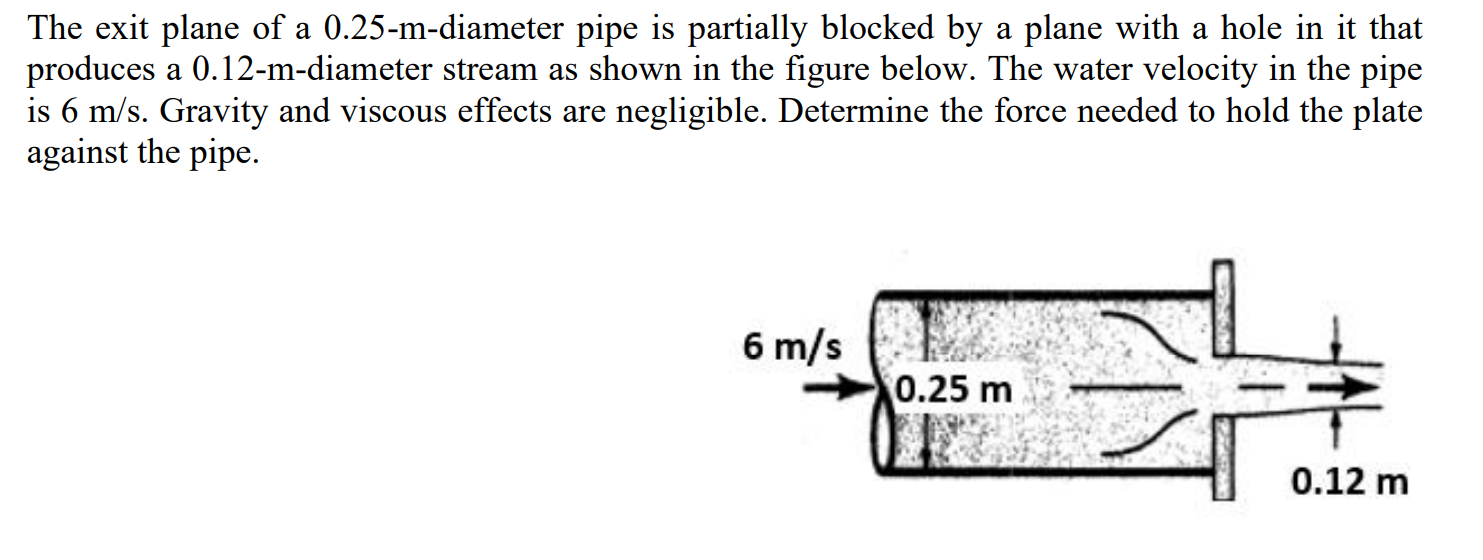

The exit plane of a 0.25-m-diameter pipe is partially blocked by a plane with a hole in it that produces a 0.12-m-diameter stream as shown in the figure below. The water velocity in the pipe is 6 m/s. Gravity and viscous effects are negligible. Determine the force needed to hold the plate against the pipe. 6 m/s 0.25 m 0.12 m
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
