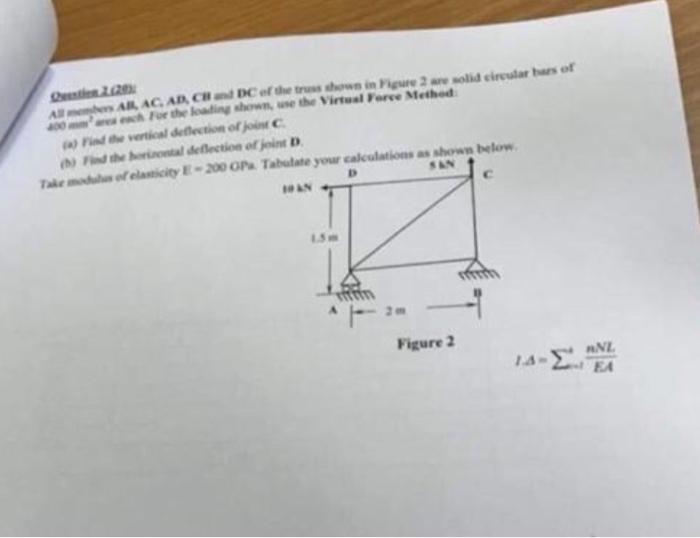

All members AB,AC, AD, CB and DC of the truss shown in Figure 2 are solid circular bars of 400 mm^2 area each. For the loading shown, use the Virtual Force Method:
(a) Find the vertical deflection of joint C
(b) Find the horizontal deflection of Joint D

All Members Ab Ac Ad Cb And Dc Of The Truss Shown In Figure 2 Are Solid Circular Bars Of 400 Mm 2 Area Each For The L 1 (23.88 KiB) Viewed 12 times

00 220 AB, AC, ARCHDCf the trusshown in Figure 2 r solid circular burs of For the leading show use the Virtual Force Method in the articol detection of jou In the election of joint D. Take mdahal clasic E-200 CP Tabotate your calculations as shown below ON SAN Figure 2 1. ANZ EA
