1 Please Solve The Frame Of The Static System Presented Below Make The Bending Moment Diagram M The Shearing Force 1 (27.26 KiB) Viewed 13 times
A=190 kN B=80kN
FIND Q,M,N

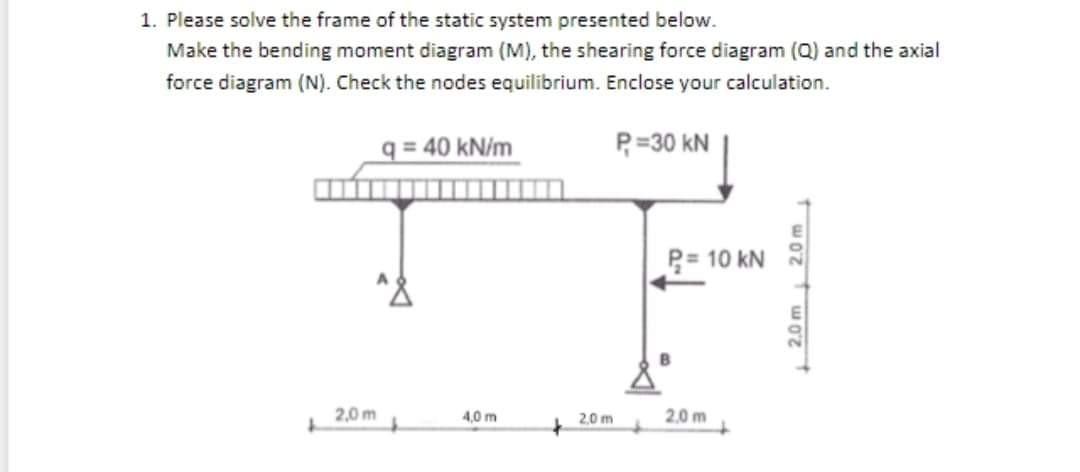

1. Please solve the frame of the static system presented below. Make the bending moment diagram (M), the shearing force diagram (Q) and the axial force diagram (N). Check the nodes equilibrium. Enclose your calculation. q = 40 kN/m P=30 KN = 10 KN 2.0 m20m 2,0 m 4,0 m 20 m 2.0 m
