Beam BC is supported by two 5/8-in-diameter pins, the on the
right he holds her from the bar AB. Beam BC has a sectional area of
2.25in^2
and the bar AB of 1.25in^2.
a.
Determine the average normal stress in bar AB.
b.
Determine the average shear stress in pin C.
F1= 1287 lb

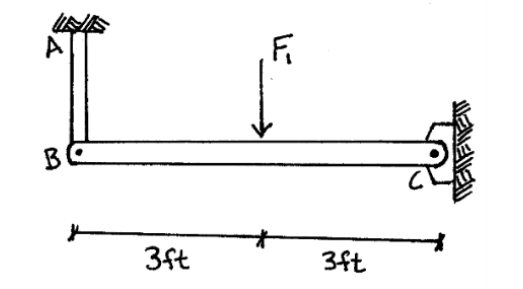

Beam Bc Is Supported By Two 5 8 In Diameter Pins The On The Right He Holds Her From The Bar Ab Beam Bc Has A Sectional 1 (26.04 KiB) Viewed 35 times
IVA Fi Ве B Wall 3ft 3ft
