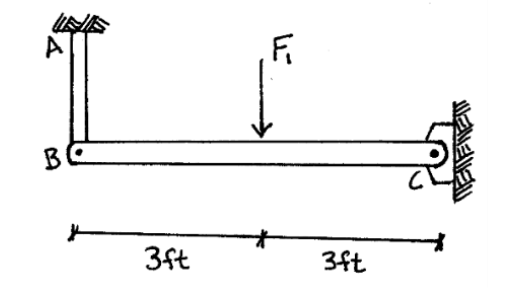

Beam BC is supported by two 5/8-in-diameter pins,
the
on the right he holds her from the bar
AB
. Beam BC has a sectional area of 2.25
in
two
and the bar AB of 1.25
in
two
.
a.
Determine the average normal stress in bar AB.
b.
Determine the average shear stress in pin C.
F1= 1287 lb
