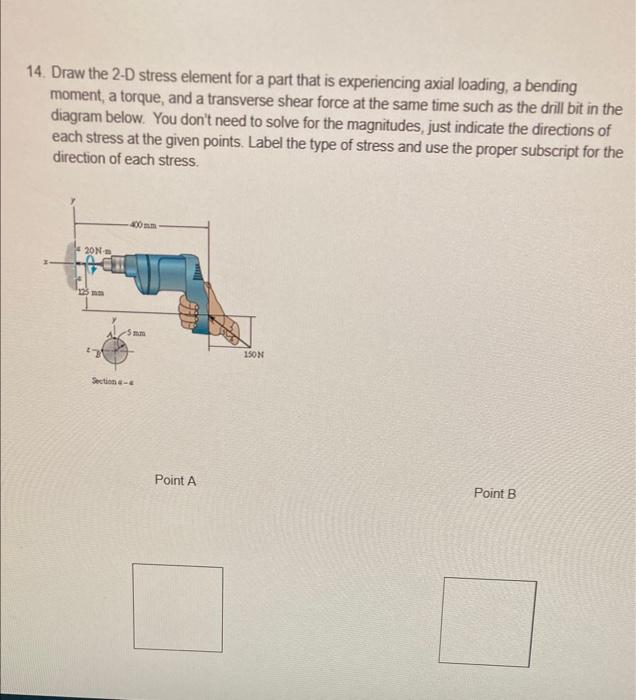

14. Draw the 2-D stress element for a part that is experiencing axial loading, a bending moment, a torque, and a transverse shear force at the same time such as the drill bit in the diagram below. You don't need to solve for the magnitudes, just indicate the directions of each stress at the given points. Label the type of stress and use the proper subscript for the direction of each stress. 20N 150N Section Point A Point B
