Calculate the maximum design force "P" that the connection (Fig 3) can resist. All steel is Grade S355JR. All bolts are

Post by answerhappygod »

Calculate The Maximum Design Force P That The Connection Fig 3 Can Resist All Steel Is Grade S355jr All Bolts Are 1
Calculate The Maximum Design Force P That The Connection Fig 3 Can Resist All Steel Is Grade S355jr All Bolts Are 1 (33.23 KiB) Viewed 19 times

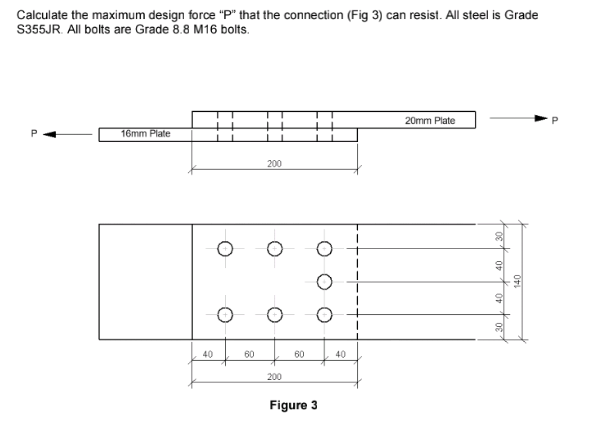

Calculate the maximum design force "P" that the connection (Fig 3) can resist. All steel is Grade S355JR. All bolts are Grade 8.8 M16 bolts. 20mm Plate P 16mm Plate 200 os 40 40 140 40 60 60 40 200 Figure 3
