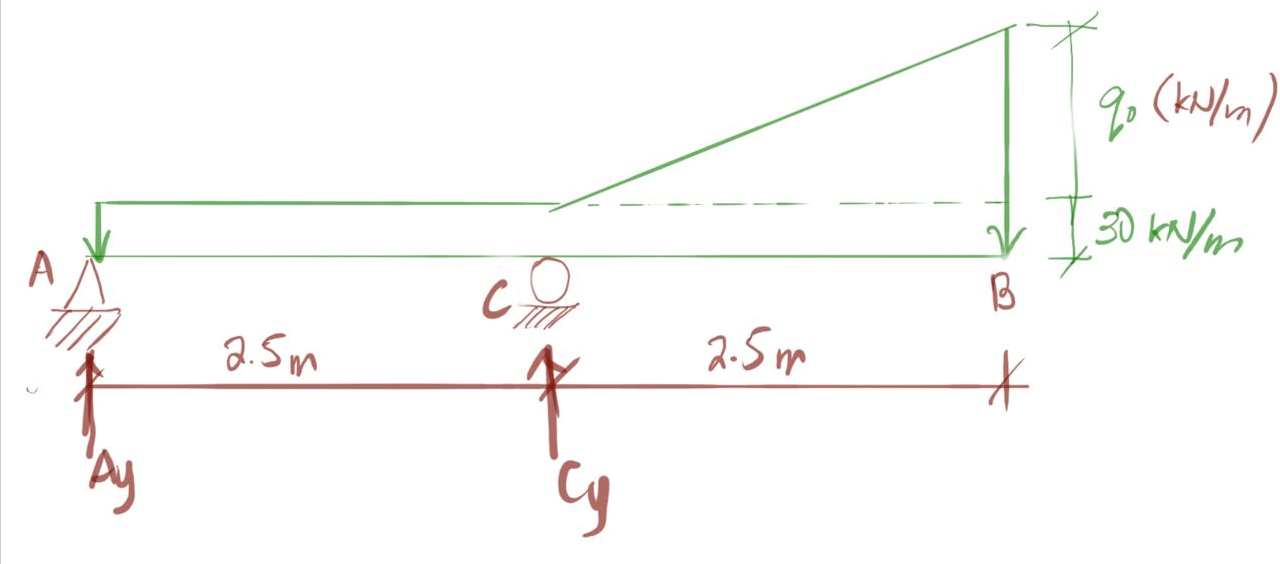

qo (kw/m) kN I 30 kN/m А 2 B 2.5m 2.5m X Cy
q0 in lb/ft = 28 The corrected figure is the one below
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
q0 in lb/ft = 28 The corrected figure is the one below
q0 in lb/ft = 28
The corrected figure is the one below

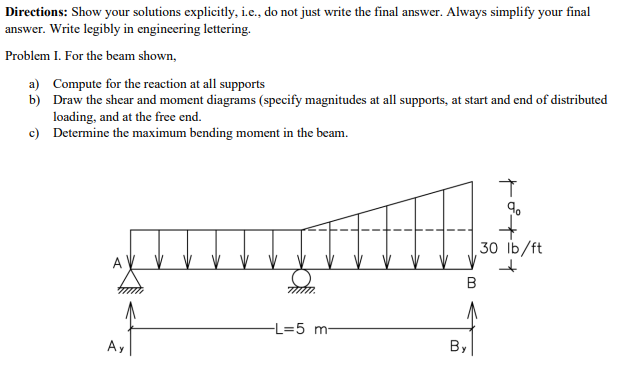

Directions: Show your solutions explicitly, i.e., do not just write the final answer. Always simplify your final answer. Write legibly in engineering lettering. Problem I. For the beam shown, a) Compute for the reaction at all supports b) Draw the shear and moment diagrams (specify magnitudes at all supports, at start and end of distributed loading, and at the free end. c) Determine the maximum bending moment in the beam. † 90 AV and 30 lb/ft 1 B 71 -L=5 m Ay By
qo (kw/m) kN I 30 kN/m А 2 B 2.5m 2.5m X Cy
The corrected figure is the one below
Directions: Show your solutions explicitly, i.e., do not just write the final answer. Always simplify your final answer. Write legibly in engineering lettering. Problem I. For the beam shown, a) Compute for the reaction at all supports b) Draw the shear and moment diagrams (specify magnitudes at all supports, at start and end of distributed loading, and at the free end. c) Determine the maximum bending moment in the beam. † 90 AV and 30 lb/ft 1 B 71 -L=5 m Ay By
qo (kw/m) kN I 30 kN/m А 2 B 2.5m 2.5m X Cy
