Q4 Consider the coplanar lightweight truss depicted below with an 8 kN load applied to Pin I 2 m 2 m 2 m 2 m D E G Н 2 m
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Q4 Consider the coplanar lightweight truss depicted below with an 8 kN load applied to Pin I 2 m 2 m 2 m 2 m D E G Н 2 m

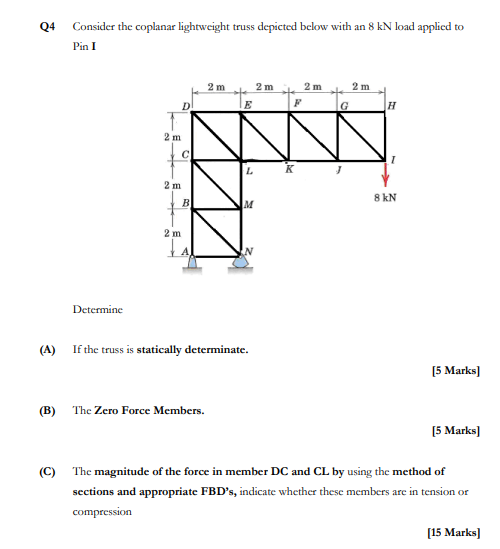

Q4 Consider the coplanar lightweight truss depicted below with an 8 kN load applied to Pin I 2 m 2 m 2 m 2 m D E G Н 2 m с K 2 m B 8 kN M 2 m Determine (A) If the truss is statically determinate. (5 Marks) (B) The Zero Force Members. [5 Marks (C) The magnitude of the force in member DC and CL by using the method of sections and appropriate FBD's, indicate whether these members are in tension or compression [15 Marks)
