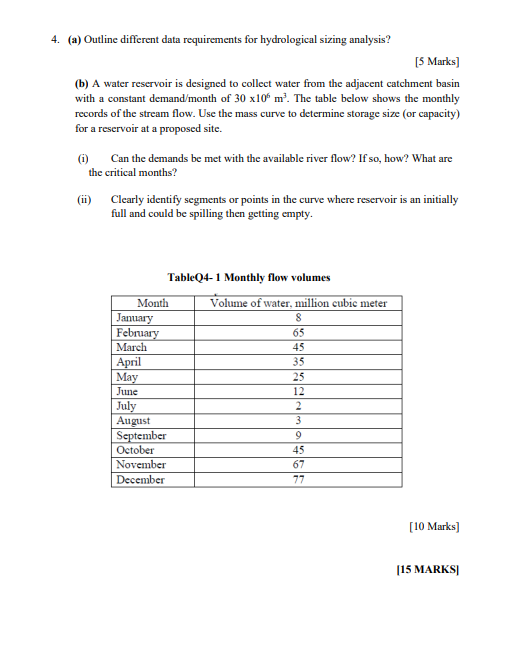

4. (a) Outline different data requirements for hydrological sizing analysis? [5 Marks) (b) A water reservoir is designed to collect water from the adjacent catchment basin with a constant demand/month of 30 x10 m². The table below shows the monthly records of the stream flow. Use the mass curve to determine storage size (or capacity) for a reservoir at a proposed site. (1) Can the demands be met with the available river flow? If so, how? What are the critical months? (ii) Clearly identify segments or points in the curve where reservoir is an initially full and could be spilling then getting empty. TableQ4-1 Monthly flow volumes Month January February March April May June July August September October November December Volume of water, million cubic meter 8 65 45 35 25 12 2 3 9 45 67 77 [10 Marks) [15 MARKS
