PROBLEM 2 The overhanging beam shown in Figure 2 is pinned at A and roller supported at C. 2a) Replace the distributed l

[answerhappygod]

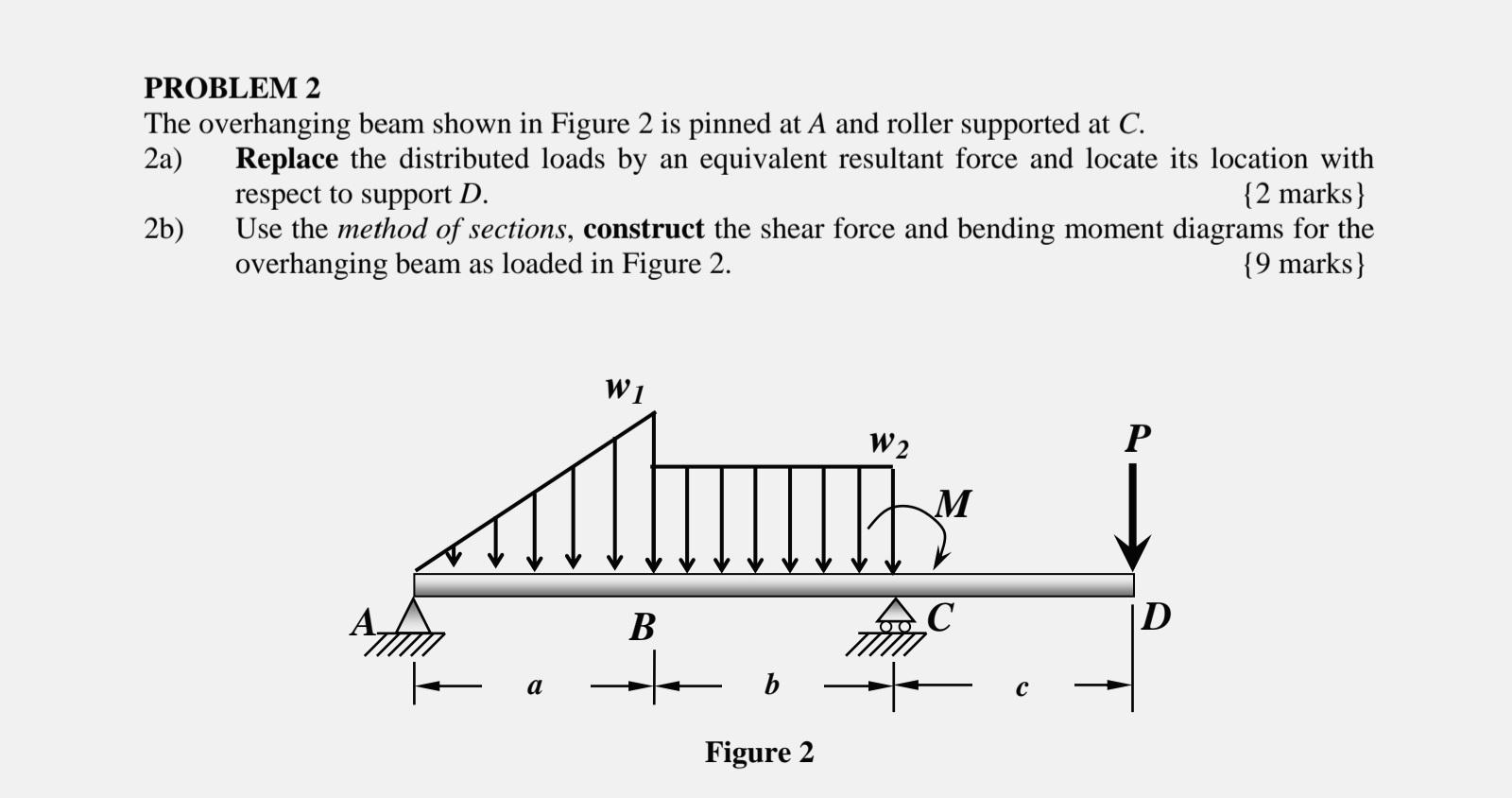

Problem 2 The Overhanging Beam Shown In Figure 2 Is Pinned At A And Roller Supported At C 2a Replace The Distributed L 1 (87.04 KiB) Viewed 19 times

b= 2m
c= 5m
w1= 20kN/m
w2= 10kN/m
w3= 15kN/m
M = 38kN.m
P=30kN
PROBLEM 2 The overhanging beam shown in Figure 2 is pinned at A and roller supported at C. 2a) Replace the distributed loads by an equivalent resultant force and locate its location with respect to support D. [2 marks } 2b) Use the method of sections, construct the shear force and bending moment diagrams for the overhanging beam as loaded in Figure 2. {9 marks) W1 W2 P ரியார் M M B C ID a a b с Figure 2
