PROBLEM 1 The overhanging beam shown in Figure 1 is pinned at B and roller supported at C. 1a) Draw the shear force and

[answerhappygod]

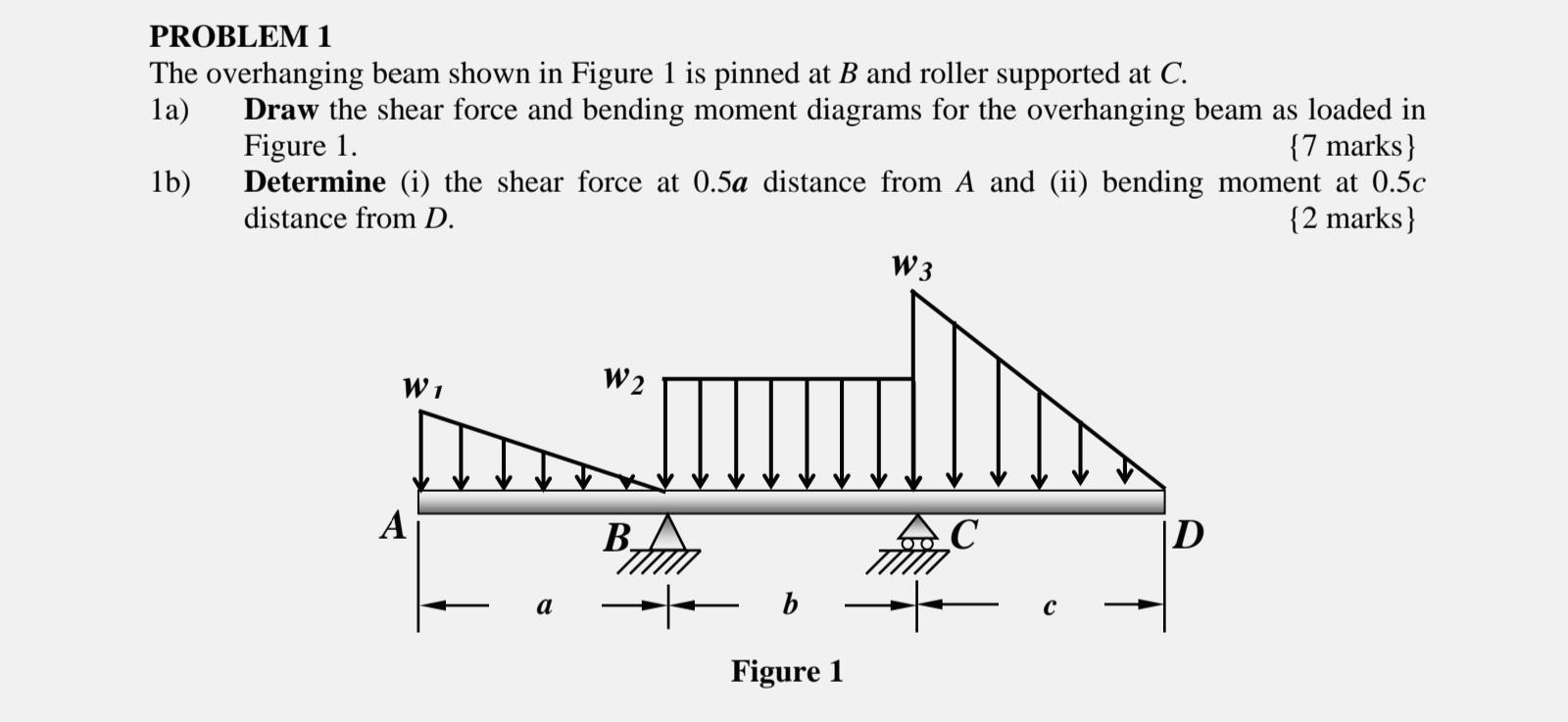

Problem 1 The Overhanging Beam Shown In Figure 1 Is Pinned At B And Roller Supported At C 1a Draw The Shear Force And 1 (79.32 KiB) Viewed 17 times

b= 2m
c= 5m
w1= 20kN/m
w2= 10kN/m
w3= 15kN/m
PROBLEM 1 The overhanging beam shown in Figure 1 is pinned at B and roller supported at C. 1a) Draw the shear force and bending moment diagrams for the overhanging beam as loaded in Figure 1. {7 marks) 1b) Determine (i) the shear force at 0.5a distance from A and (ii) bending moment at 0.50 distance from D. {2 marks } W3 W2 im-ரா A B C ID a to b Figure 1
