Q1 The Structure Below Showed A Beam And Column Of A Parking Garage This Is A Steel Structure That Includes A Beam Tru 2 (41.63 KiB) Viewed 26 times

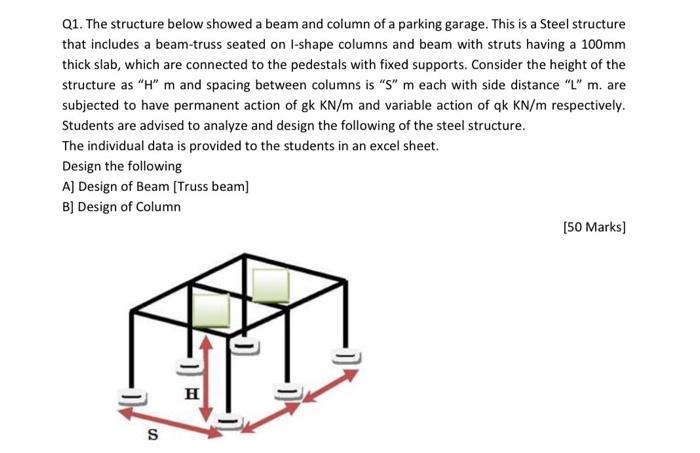

Q1. The structure below showed a beam and column of a parking garage. This is a Steel structure that includes a beam-truss seated on 1-shape columns and beam with struts having a 100mm thick slab, which are connected to the pedestals with fixed supports. Consider the height of the structure as "H" m and spacing between columns is "S" m each with side distance "L" m. are subjected to have permanent action of gk kN/m and variable action of gk kN/m respectively. Students are advised to analyze and design the following of the steel structure. The individual data is provided to the students in an excel sheet. Design the following A] Design of Beam (Truss beam) B] Design of Column (50 Marks) s
