- A Structural Continuous Beam At An Intermediate Floor Level Is Shown In Figure 1 Below You Are Required To Analyze The 1 (113.89 KiB) Viewed 10 times

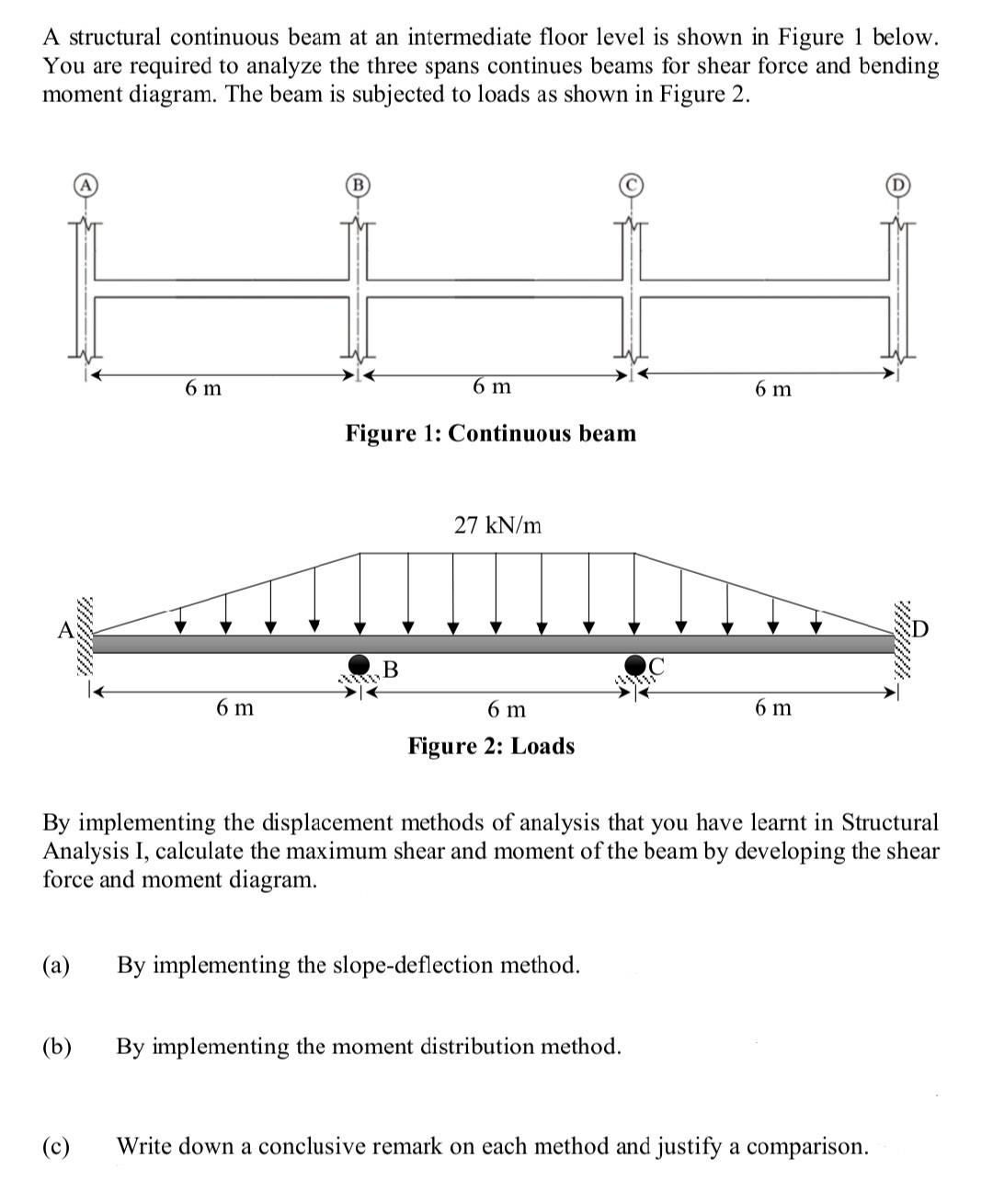

A structural continuous beam at an intermediate floor level is shown in Figure 1 below. You are required to analyze the three spans continues beams for shear force and bending moment diagram. The beam is subjected to loads as shown in Figure 2. 6 m 6 m 6 m Figure 1: Continuous beam 27 kN/m WM B 6 m 6 m 6 m Figure 2: Loads By implementing the displacement methods of analysis that you have learnt in Structural Analysis I, calculate the maximum shear and moment of the beam by developing the shear force and moment diagram. (a) By implementing the slope-deflection method. (b) By implementing the moment distribution method. (c) Write down a conclusive remark on each method and justify a comparison.
