P.5. For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 3

Post by answerhappygod »

P 5 For The Beam And Loading Shown Determine The Maximum Normal Stress Due To Bending On A Transverse Section At C 3 1
P 5 For The Beam And Loading Shown Determine The Maximum Normal Stress Due To Bending On A Transverse Section At C 3 1 (23.74 KiB) Viewed 14 times

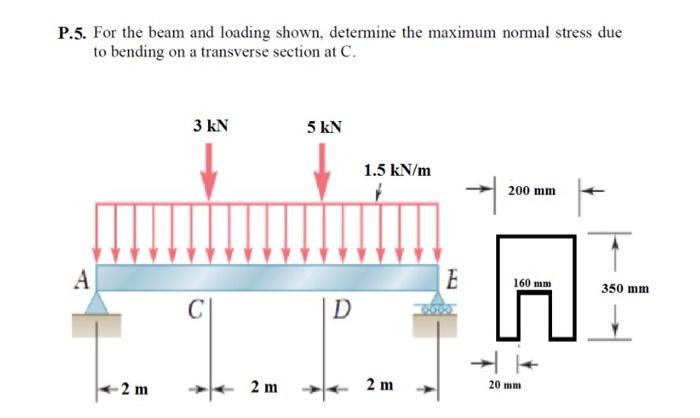

P.5. For the beam and loading shown, determine the maximum normal stress due to bending on a transverse section at C. 3 KN 5 kN 1.5 kN/m 200 mm А E 160 mm 350 mm с D + 2 m 2 m 2 m 20 mm
