Prepared by: Res. Asst. Burak AKBAŞ Question 2: Following trapezoidal foundation is planned to be constructed on a soil

[answerhappygod]

Prepared By Res Asst Burak Akbas Question 2 Following Trapezoidal Foundation Is Planned To Be Constructed On A Soil 1 (29.82 KiB) Viewed 12 times

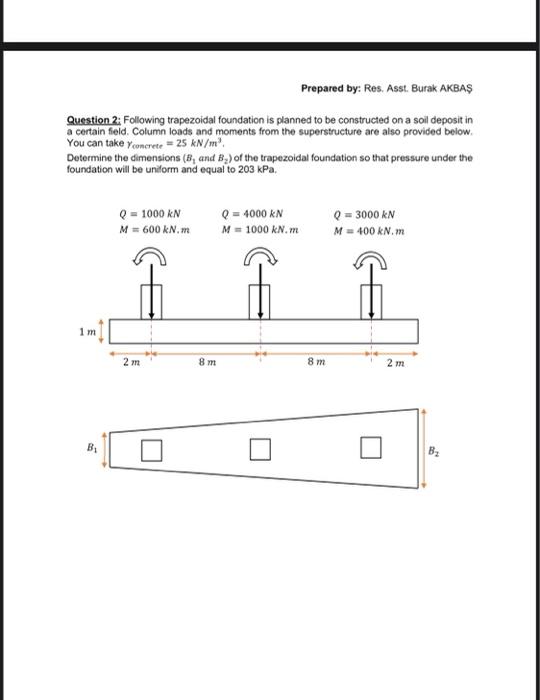

Prepared by: Res. Asst. Burak AKBAŞ Question 2: Following trapezoidal foundation is planned to be constructed on a soil deposit in a certain field.Column loads and moments from the superstructure are also provided below. You can take concrete = 25 kN/m Determine the dimensions (, and B) of the trapezoidal foundation so that pressure under the foundation will be uniform and equal to 203 kPa. Q = 1000 KN M = 600 kN. Q = 4000 KN M = 1000 kN.m Q = 3000 KN M = 400 kN.m 1 m 2 m 8 m 8 m 2 m B;
