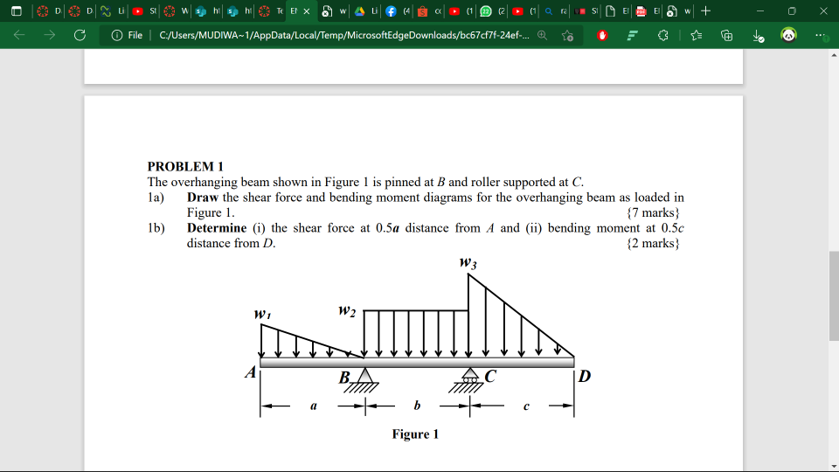

(1 SI E + - hi Te Ex @ w C:/Users/MUDIWA-1/AppData/local/Temp/Microsoft Edge Downloads/bc67c7f-24ef-. Q 06 File to PROBLEM 1 The overhanging beam shown in Figure 1 is pinned at B and roller supported at C. 1a) Draw the shear force and bending moment diagrams for the overhanging beam as loaded in Figure 1. {7 marks 1b) Determine (1) the shear force at 0.5a distance from A and (ii) bending moment at 0.5c distance from D. {2 marks) W3 W1 W2 В. C D - 0 Figure 1
