40 KN 20 KN 1m K 1m А 1m B Figure Q4 (b) The frictionless pin-jointed truss shown in Figure Q4 lies in a vertical plane

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

40 KN 20 KN 1m K 1m А 1m B Figure Q4 (b) The frictionless pin-jointed truss shown in Figure Q4 lies in a vertical plane

Post by answerhappygod »

1
1 (133.79 KiB) Viewed 12 times
Could someone solve this question for me please? thanks

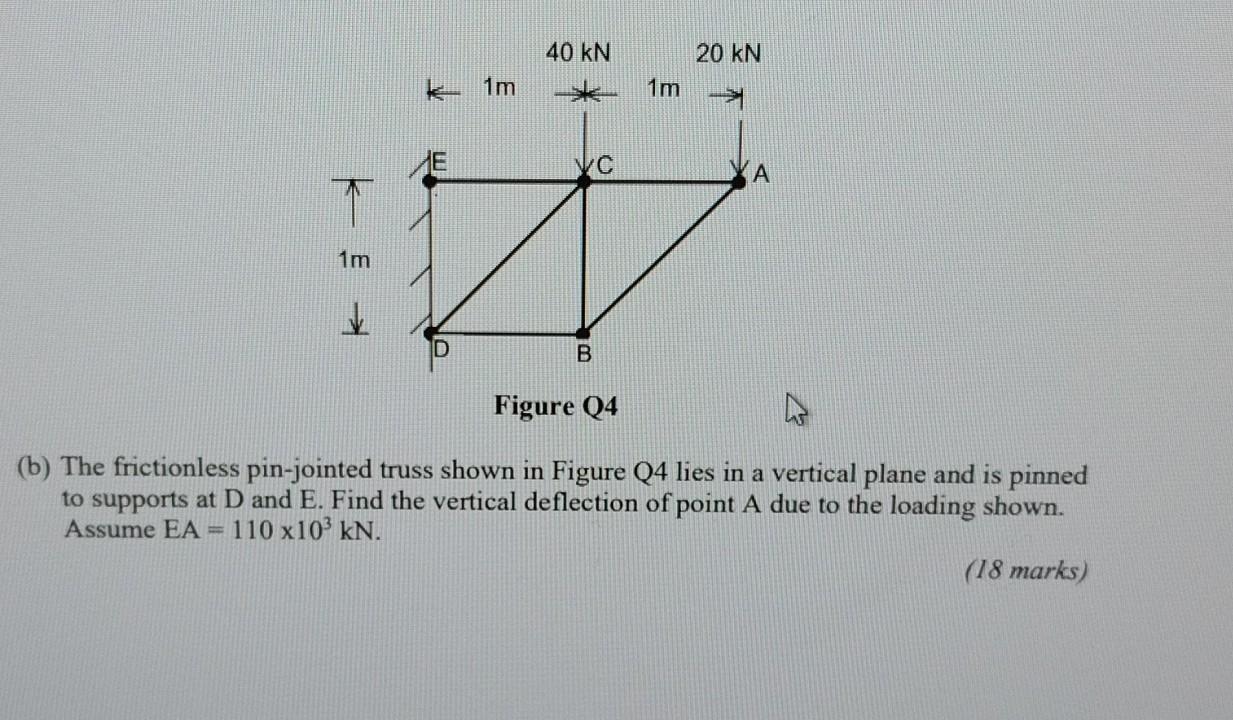

40 KN 20 KN 1m K 1m А 1m B Figure Q4 (b) The frictionless pin-jointed truss shown in Figure Q4 lies in a vertical plane and is pinned to supports at D and E. Find the vertical deflection of point A due to the loading shown. Assume EA = 110 x103 kN. (18 marks)
