A. For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or she

[answerhappygod]

A. For the beam loaded as shown in the figure 1, determine the
following unknowns using shear and moment equation or shear and
moment diagram. Use a = 3.2 m, b = 10.6 kN/m, c = 17 kN
Maximum positive shear in kN. Input positive
values only.
B. For the beam loaded as shown in the figure 1, determine
the following unknowns using shear and moment equation or shear and
moment diagram. Maximum negative shear in kN.
Input negative values only
C. For the beam loaded as shown in the figure 1, determine
the following unknowns using shear and moment equation or shear and
moment diagram.
Maximum positive moment in kN-m. Input positive
values only.
D. For the beam loaded as shown in the figure 1, determine
the following unknowns using shear and moment equation or shear and
moment diagram.
Maximum negative moment in kN-m. Input negative
values only.

A For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or She 1 (166.49 KiB) Viewed 12 times

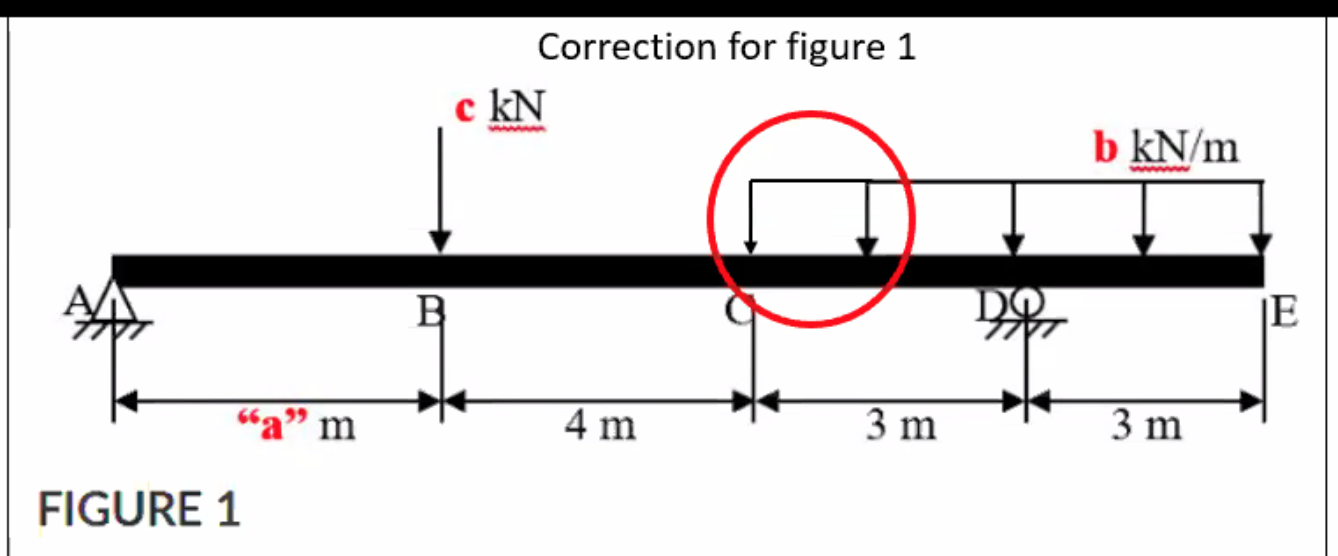

Correction for figure 1 c kN b kN/m B lud DO JE "a"m 4 m 3 m 3 m FIGURE 1
