P=42kN. Please solve it quickly, will give a like.
- A 4m B 5m C 4m W1 22kn M W2 17kn M W3 29kn M M 37kn M P 42kn Please Solve It Quickly Will Give A Like 1 (77.65 KiB) Viewed 12 times
a=4m, b=5m, c=4m, w1=22kN/m, w2=17kN/m, w3=29kN/m, M=37kN.m, P=42kN. Please solve it quickly, will give a like.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
a=4m, b=5m, c=4m, w1=22kN/m, w2=17kN/m, w3=29kN/m, M=37kN.m, P=42kN. Please solve it quickly, will give a like.
a=4m, b=5m, c=4m, w1=22kN/m, w2=17kN/m, w3=29kN/m, M=37kN.m,
P=42kN. Please solve it quickly, will give a like.

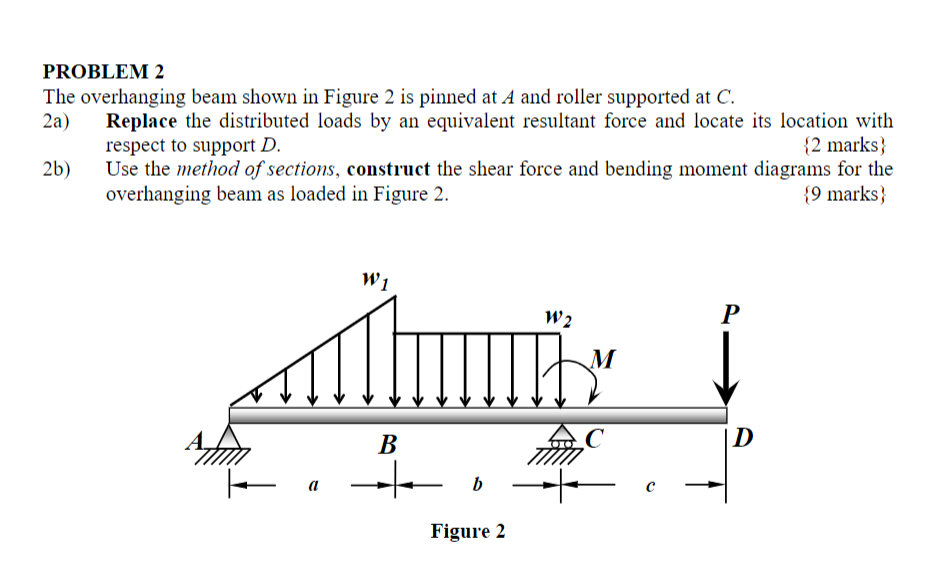

PROBLEM 2 The overhanging beam shown in Figure 2 is pinned at A and roller supported at C. 2a) Replace the distributed loads by an equivalent resultant force and locate its location with respect to support D. {2 marks 2b) Use the method of sections, construct the shear force and bending moment diagrams for the overhanging beam as loaded in Figure 2. {9 marks) W1 W2 Р M B C D a - ta b Figure 2
P=42kN. Please solve it quickly, will give a like.
PROBLEM 2 The overhanging beam shown in Figure 2 is pinned at A and roller supported at C. 2a) Replace the distributed loads by an equivalent resultant force and locate its location with respect to support D. {2 marks 2b) Use the method of sections, construct the shear force and bending moment diagrams for the overhanging beam as loaded in Figure 2. {9 marks) W1 W2 Р M B C D a - ta b Figure 2
