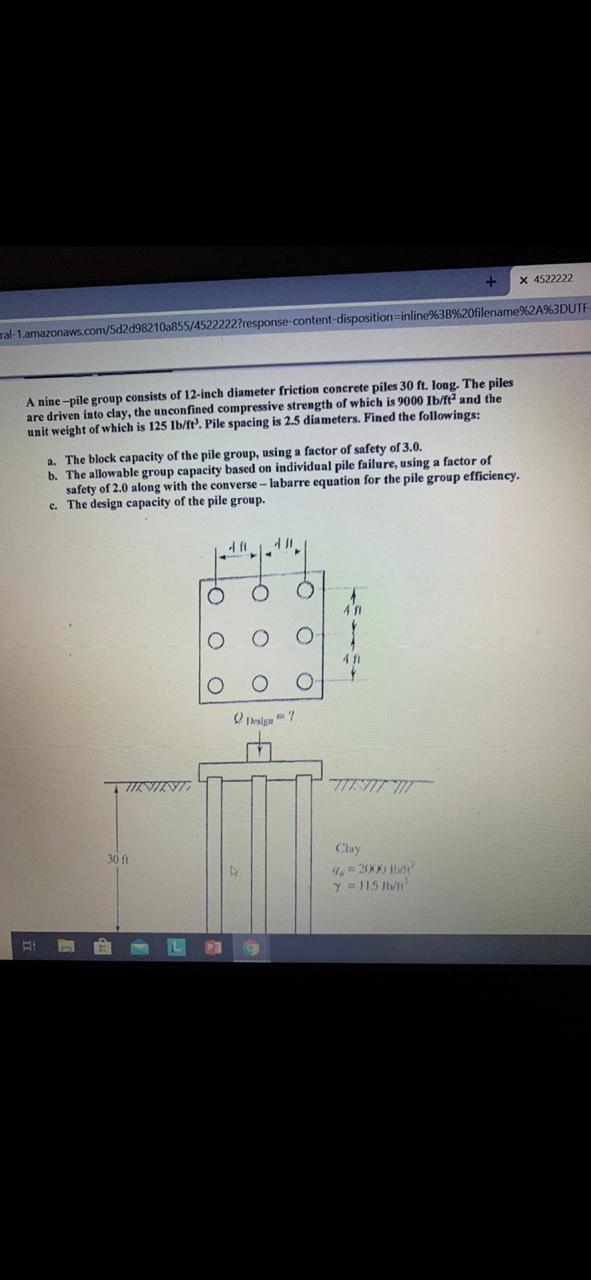

X 4522222 ral-1.amazonaws.com/5d2d98210855/4522222?response-content-disposition=inline%3B%20filename%2A%3DUTF A nine-pile group consists of 12-inch diameter friction concrete piles 30 ft. long. The piles are driven into clay, the unconfined compressive strength of which is 9000 lb/ft and the unit weight of which is 125 lb/ft. Pile spacing is 2.5 diameters. Fined the followings: a. The block capacity of the pile group, using a factor of safety of 3.0. b. The allowable group capacity based on individual pile failure, using a factor of safety of 2.0 along with the converse - labarre equation for the pile group efficiency. c. The design capacity of the pile group. 41 이어 oo 이 411 o 7 + TIKVIZI 7777777 30 Clay 4. = 20 y = 15
