= = 3. A reinforced concrete beam has a cross section as shown. Use f'c = 30 MPa, fy = 345 MPa and As = 2033 mm2. The di

[answerhappygod]

3 A Reinforced Concrete Beam Has A Cross Section As Shown Use F C 30 Mpa Fy 345 Mpa And As 2033 Mm2 The Di 1 (37.26 KiB) Viewed 10 times

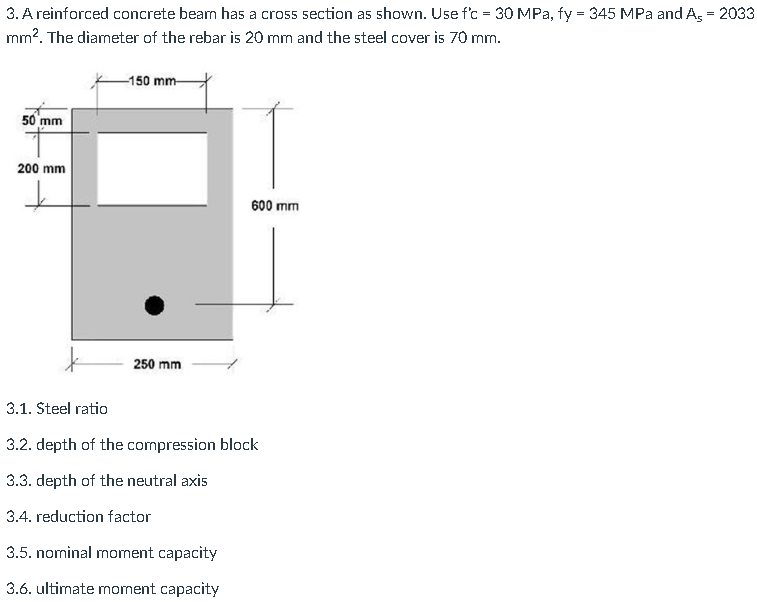

= = 3. A reinforced concrete beam has a cross section as shown. Use f'c = 30 MPa, fy = 345 MPa and As = 2033 mm2. The diameter of the rebar is 20 mm and the steel cover is 70 mm. -150 mm 50 mm 200 mm 600 mm 250 mm 3.1. Steel ratio 3.2. depth of the compression block 3.3. depth of the neutral axis 3.4. reduction factor 3.5. nominal moment capacity 3.6. ultimate moment capacity
