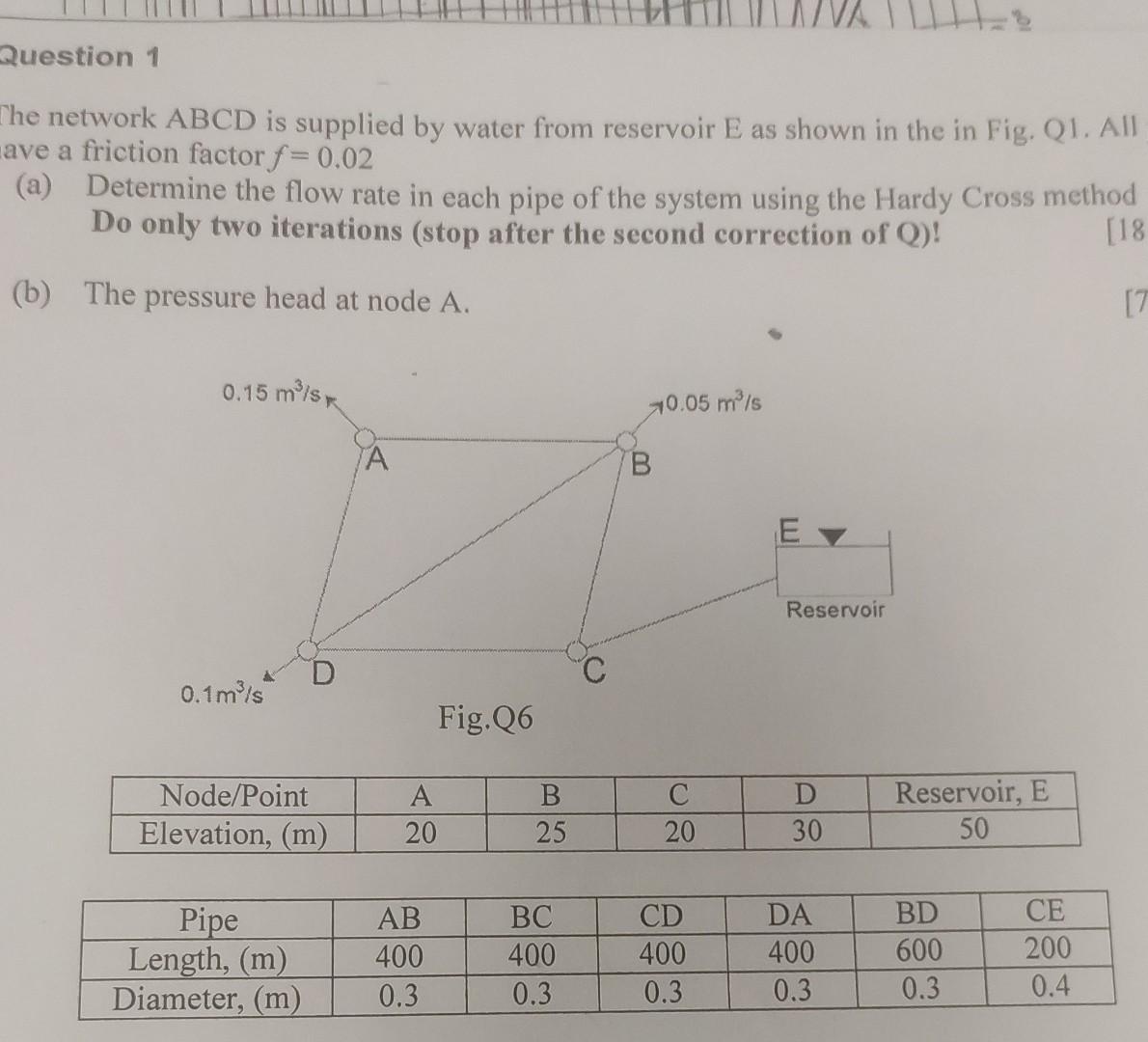

Question 1 The network ABCD is supplied by water from reservoir E as shown in the in Fig. Q1. All have a friction factor f= 0.02 (a) Determine the flow rate in each pipe of the system using the Hardy Cross method Do only two iterations (stop after the second correction of Q)! [18 (b) The pressure head at node A. [7 0.15 m/s 10.05 m/s B. E 7 Reservoir с 0.1 m/s Fig. 26 B Node/Point Elevation, (m) A 20 С 20 D 30 Reservoir, E 50 25 Pipe Length, (m) Diameter, (m) AB 400 0.3 BC 400 0.3 CD 400 0.3 DA 400 0.3 BD 600 CE 200 0.4 0.3
