a= 8m, b= 3.9m, c= 302mm, d= 54 mm
a.) Distance of the centroid to the outermost fiber of the beam in mm
b.) Moment of inertia of the beam about centroidal x-axis in *10^6mm^4
c.) Maximum flexural stress in Mpa( Input absolute value of the answer)
d.) Maximum flexural shear stress in Mpa( Input absolute value of the answer)

A 8m B 3 9m C 302mm D 54 Mm A Distance Of The Centroid To The Outermost Fiber Of The Beam In Mm B Moment Of I 1 (33.99 KiB) Viewed 11 times

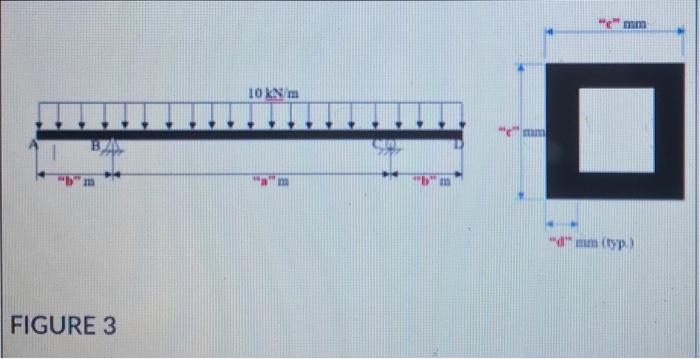

LULU 10 kN/m m na IS mu (typ (d) FIGURE 3
