use a= 19 kN, b= 32 kN
a.) Find axial stress in member CB in MPa (Indicate negative if compressive stress)
b.) Find axial stress in member CD in Mpa(indicate negative if compressive stress)
(THREE DECIMAL PLACES FOR ALL VALUES)

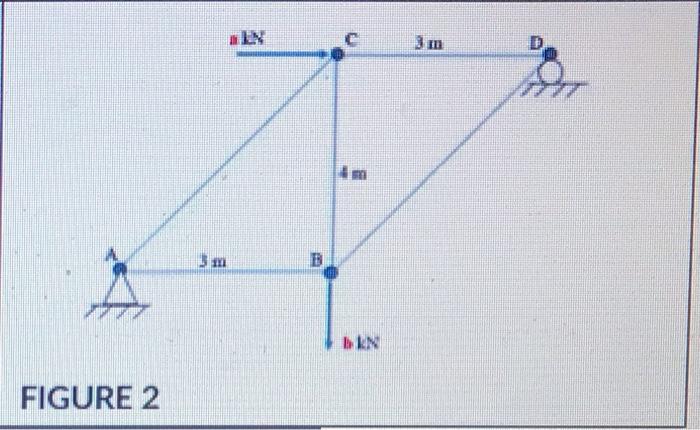

Use A 19 Kn B 32 Kn A Find Axial Stress In Member Cb In Mpa Indicate Negative If Compressive Stress B Find Axia 1 (56.7 KiB) Viewed 13 times
BEN 3 m 20 DEN FIGURE 2
