please use a.) 4.1 m, b.) 12.9kn/m, c.) 15 kn

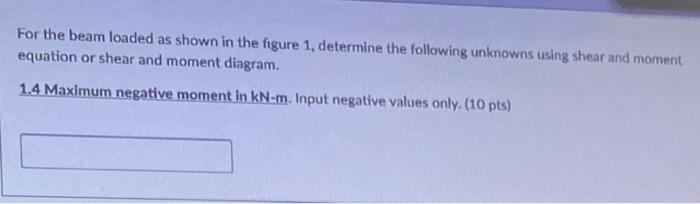

For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear and moment diagram. 1.4 Maximum negative moment in kN-m. Input negative values only. (10 pts)

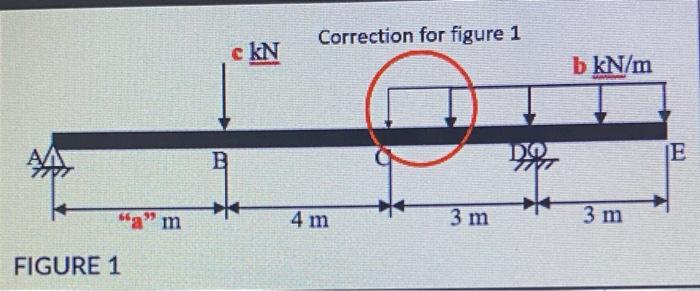

Correction for figure 1 c kN b kN/m B ЈЕ "a" m 4 m 3 m 3 m FIGURE 1
