For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear

Post by answerhappygod »

For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or Shear 1
For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or Shear 1 (13.74 KiB) Viewed 23 times
For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or Shear 2
For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or Shear 2 (36.57 KiB) Viewed 23 times

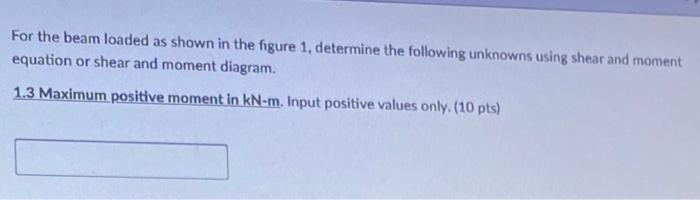

For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear and moment diagram. 1.3 Maximum positive moment in kN-m. Input positive values only. (10 pts)

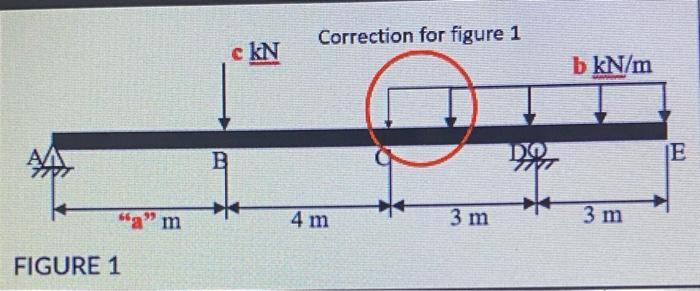

Correction for figure 1 c kN b kN/m B ЈЕ "a" m 4 m 3 m 3 m FIGURE 1
