For the beam loaded as shown in the figure 1, determine the following unknowns. using shear and moment equation or shear and moment diagram. Use a = 3.7 m, b = 12.1 kN/m, c12 kN
1.1 Maximum positive shear in kN.
1.2 Maximum negative shear in kN
1.3 Maximum positive moment in kN
1.4 Maximum negative moment in kN-m
For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment Equation Or Shear 1 (17.07 KiB) Viewed 9 times

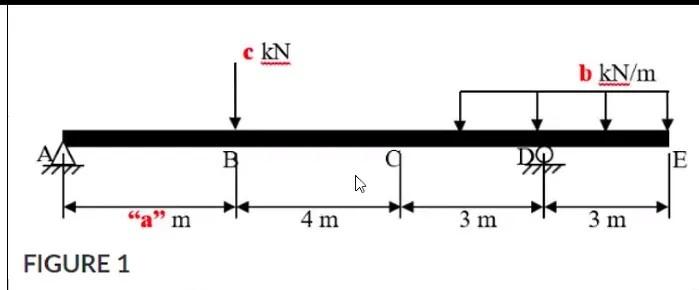

c kN b kN/m E JE ho “a” m 4 m 3 m 3 m FIGURE 1
