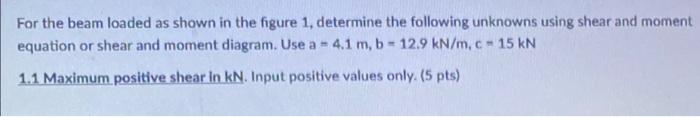

For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear and moment diagram. Use a -4,1 m, b = 12.9 kN/m,c - 15 kN 1.1 Maximum positive shear in kN. Input positive values only. (5 pts)

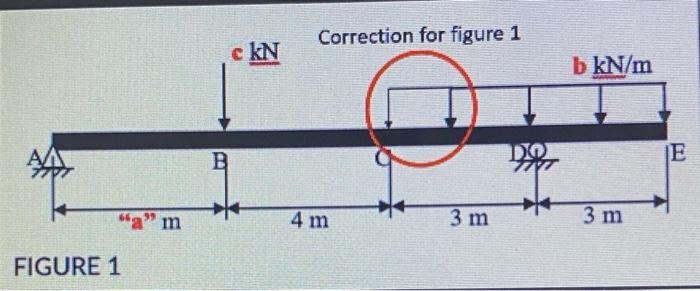

Correction for figure 1 c kN b kN/m B IE "a" m 4 m 3 m 3 m FIGURE 1
