a. Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of shear. Use LRFD and ASD method.
b. Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of flexure. Use LRFD and ASD method.
C.Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of deflection.
d. If the beam is replaced by w30 x 292, determine the size of the A36 steel base plate to be placed at each support. The concrete has a 28-day compressive strength of 21 MPa.

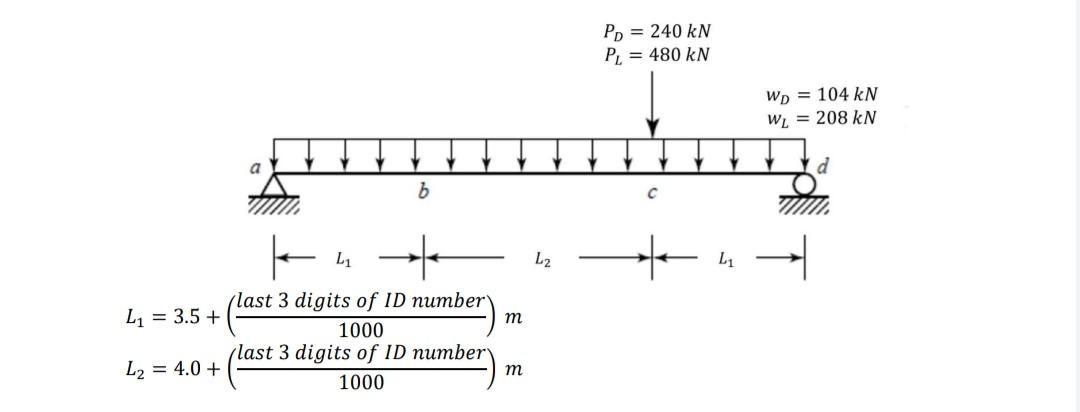

- The Beam Shown Is Laterally Braced At A B C And D Determine The Following A Use The Cross Section According To Th 1 (26.64 KiB) Viewed 12 times
USE W SECTION W14X90
USE 770 AS LAST ID NUmber.
Wd and Wl are in KN/m
PLS HELP. I WILL BE MORE THAN HAPPY.
Pp = 240 kN PL = 480 kN Wp = 104 kN WL = 208 kN d b L1 L2 LI m last 3 digits of ID number L1 = 3.5+ 1000 last 3 digits of ID number L2 = 4.0 + 1000 m
