The beam has an internal hinge at C. Express your answers in kN. Solve for the reaction at B.

Post by answerhappygod »

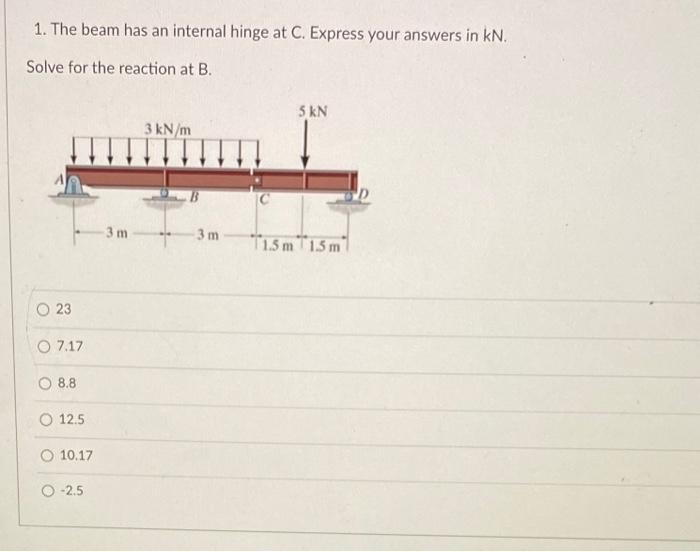

The beam has an internal hinge at C. Express your answers in kN.
Solve for the reaction at B.
The Beam Has An Internal Hinge At C Express Your Answers In Kn Solve For The Reaction At B 1
The Beam Has An Internal Hinge At C Express Your Answers In Kn Solve For The Reaction At B 1 (29.44 KiB) Viewed 10 times
1. The beam has an internal hinge at C. Express your answers in kN. Solve for the reaction at B. 3 kN 3 kN/m 3 m 3 m 11.5 m 15 m O 23 O 7.17 8.8 O 12.5 10.17 0 -2.5
