For the beam loaded as shown in the figure. (1) Derive the expressions for the shear force and the bending moment for ea

Post by answerhappygod »

For The Beam Loaded As Shown In The Figure 1 Derive The Expressions For The Shear Force And The Bending Moment For Ea 1
For The Beam Loaded As Shown In The Figure 1 Derive The Expressions For The Shear Force And The Bending Moment For Ea 1 (32.45 KiB) Viewed 13 times

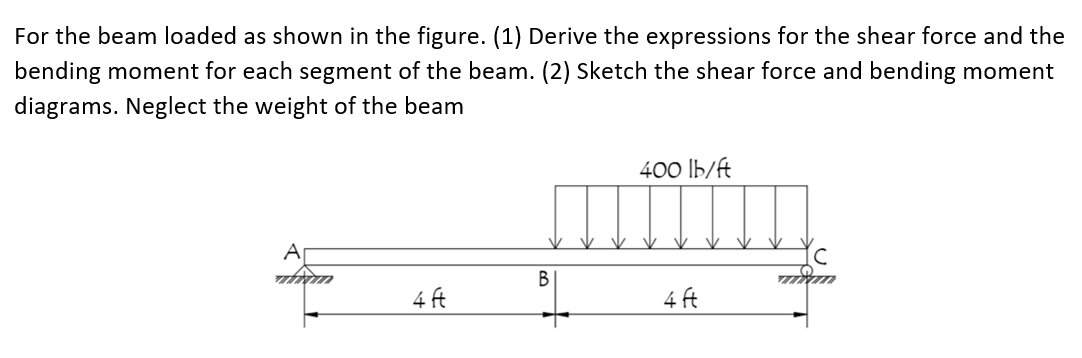

For the beam loaded as shown in the figure. (1) Derive the expressions for the shear force and the bending moment for each segment of the beam. (2) Sketch the shear force and bending moment diagrams. Neglect the weight of the beam 400 lb/A A TUD B TIT 4 ft 4 Ft
