Question 11 30 pts For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment

[answerhappygod]

Question 11 30 Pts For The Beam Loaded As Shown In The Figure 1 Determine The Following Unknowns Using Shear And Moment 1 (32.05 KiB) Viewed 17 times

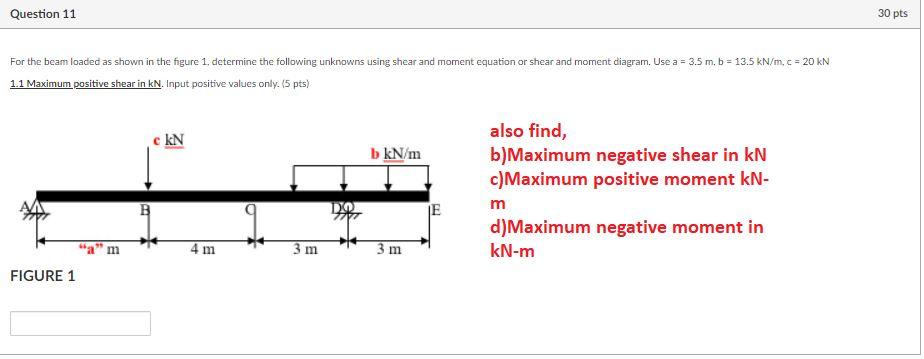

Question 11 30 pts For the beam loaded as shown in the figure 1, determine the following unknowns using shear and moment equation or shear and moment diagram. Use a = 3.5m, b = 13.5 kN/m, c = 20 kN 1.1 Maximum positive shear in kN. Input positive values only. (5 pts) c kN b kN/m also find, b)Maximum negative shear in kN c)Maximum positive moment kN- A JE m B d)Maximum negative moment in kN-m m 4 m 3 m 3 m FIGURE 1
