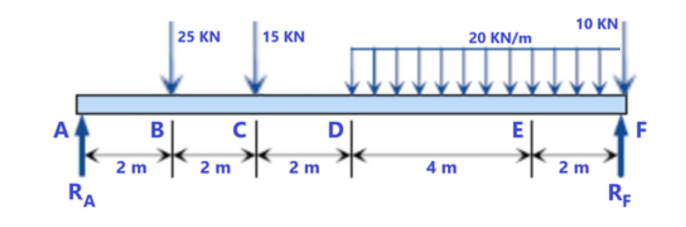

Find the maximum shear and moment values by using the Shear and
Moment Diagram. The section of the rectangular beam has a width of
250 mm and a depth of 400 mm. What is the maximum flexural stress
of the beam?
Find The Maximum Shear And Moment Values By Using The Shear And Moment Diagram The Section Of The Rectangular Beam Has 1 (55.77 KiB) Viewed 12 times
10 KN 25 KN 15 KN 20 KN/m Α. B D E F sk 2 m 2 m 2 m 4 m 2 m RA RE
