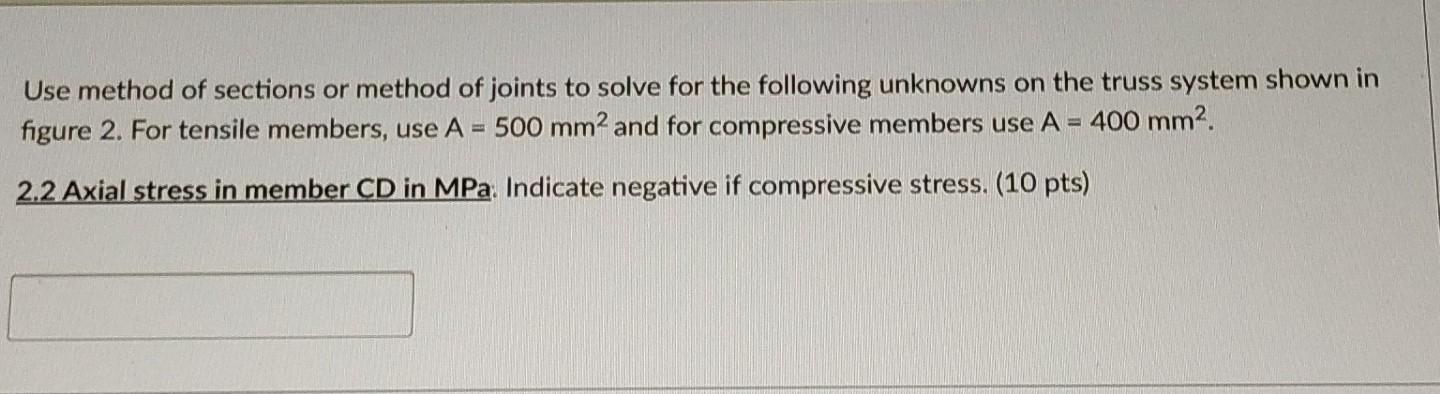

Use method of sections or method of joints to solve for the following unknowns on the truss system shown in figure 2. For tensile members, use A = 500 mm? and for compressive members use A = 400 mm2. 2.2 Axial stress in member CD in MPa. Indicate negative if compressive stress. (10 pts)
