Q3. (4 marks) Assign the vehicle trips shown in the O-D trip table to the network shown in the Figure below using the al

[answerhappygod]

Q3 4 Marks Assign The Vehicle Trips Shown In The O D Trip Table To The Network Shown In The Figure Below Using The Al 1 (26.66 KiB) Viewed 14 times

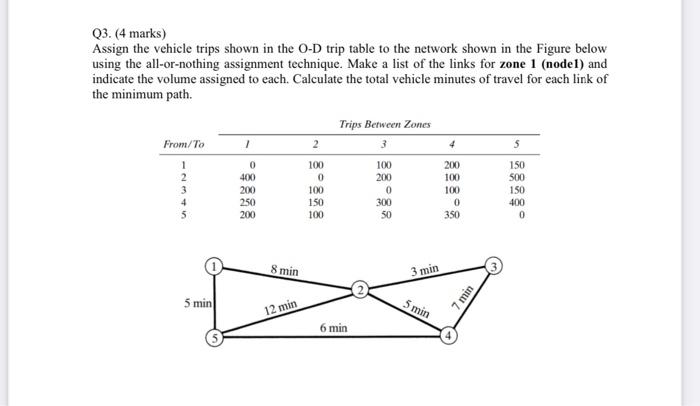

Q3. (4 marks) Assign the vehicle trips shown in the O-D trip table to the network shown in the Figure below using the all-or-nothing assignment technique. Make a list of the links for zone 1 (nodel) and indicate the volume assigned to each. Calculate the total vehicle minutes of travel for each link of the minimum path. Trips Between Zones 3 From/To 1 4 0 400 200 250 200 2 100 0 100 150 100 100 200 0 300 50 200 100 100 0 350 150 500 150 400 0 8 min 3 min 7 min 5 min 12 min 5 min 6 min
