Question 3 Two forces FAB = 350 kN and Fac = 250 kN are acting at point A at a height of 4m from the ground. The coordin

[answerhappygod]

Question 3 Two Forces Fab 350 Kn And Fac 250 Kn Are Acting At Point A At A Height Of 4m From The Ground The Coordin 1 (26.35 KiB) Viewed 10 times

Question 3 Two Forces Fab 350 Kn And Fac 250 Kn Are Acting At Point A At A Height Of 4m From The Ground The Coordin 2 (11.64 KiB) Viewed 10 times

Question 3 Two Forces Fab 350 Kn And Fac 250 Kn Are Acting At Point A At A Height Of 4m From The Ground The Coordin 3 (16.1 KiB) Viewed 10 times

Question 3 Two Forces Fab 350 Kn And Fac 250 Kn Are Acting At Point A At A Height Of 4m From The Ground The Coordin 4 (23.3 KiB) Viewed 10 times

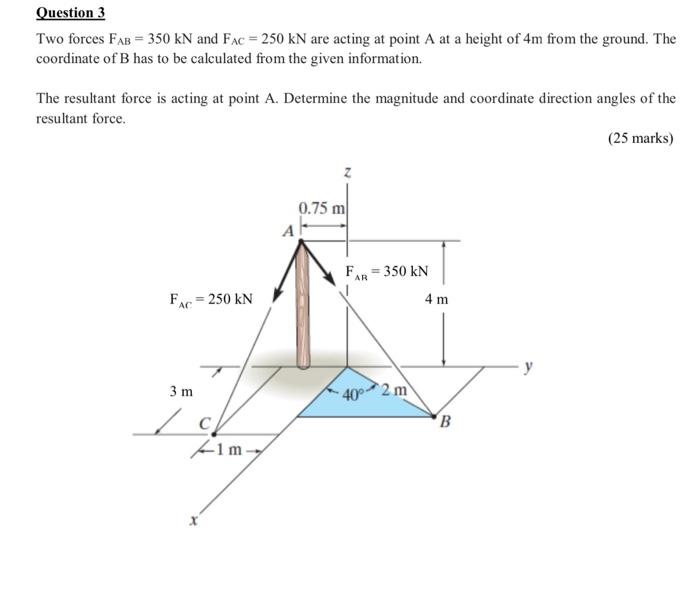

Question 3 Two forces FAB = 350 kN and Fac = 250 kN are acting at point A at a height of 4m from the ground. The coordinate of B has to be calculated from the given information. The resultant force is acting at point A. Determine the magnitude and coordinate direction angles of the resultant force. (25 marks) 0.75 m Al AR FR = 350 KN 4 m Fc = 250 KN 3 m 40° 2 m Zo 21m "В

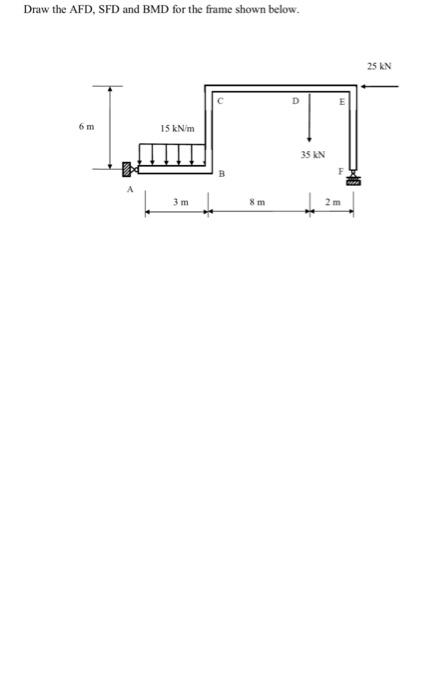

Draw the AFD, SFD and BMD for the frame shown below. 25 KN 6 m 15 kNm 35 KN B 3 m 8 m

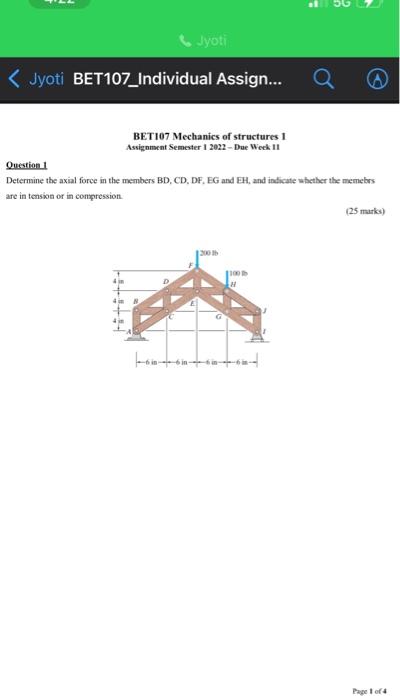

. Jyoti < Jyoti BET107_Individual Assign... a BET107 Mechanics of structures 1 Assignment Semester 1 2022 - Due Week II Ouestion 1 Determine the axial force in the members BD, CD, DF. EG and EH, and indicate whether the members are in tension or in compression (25 marks) 300 100 H 4 Page of

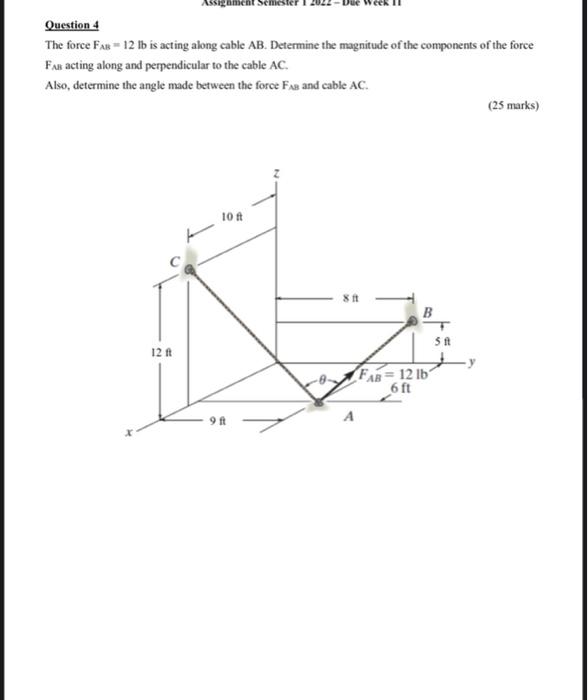

amcat Sel Question 4 The force F xe = 12 lb is acting along cable AB. Determine the magnitude of the components of the force Fax acting along and perpendicular to the cable AC. Also, determine the angle made between the force FAB and cable AC. (25 marks) 10 t 811 B SA 12 tt FAB = 12 16 6 ft 9t
