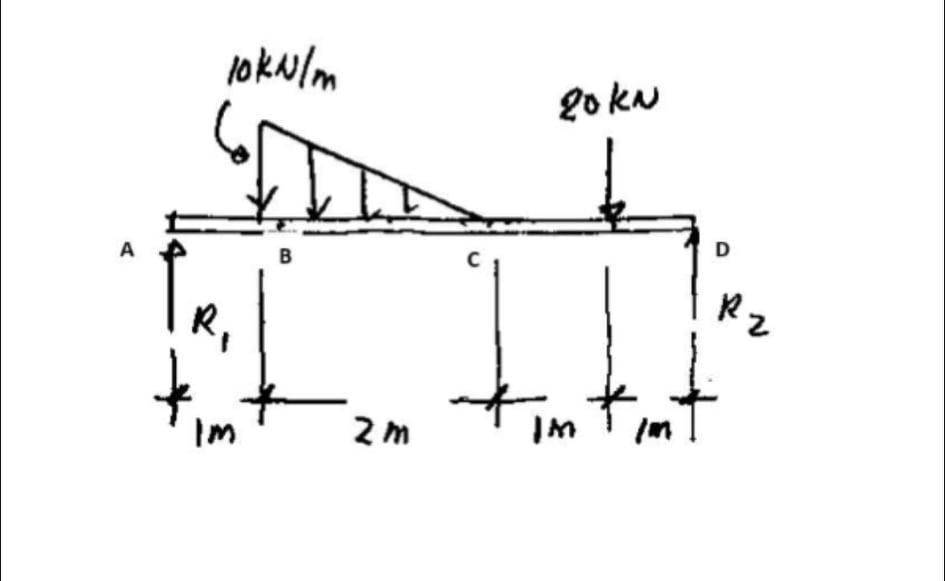

For the beam loaded as shown, do the following:1. determine the
support reactions2. determine the values of shear and moment
at every meter using the Technical Definition Method. Tabulate your
answers. 3. write the shear and moment equations for each span.4.
using the equations in #3, determine the values of shear and moment
at every change of load points
For The Beam Loaded As Shown Do The Following 1 Determine The Support Reactions2 Determine The Values Of Shear And Mo 1 (25.67 KiB) Viewed 14 times
10kulm 20kn А B D R2 R, 2m IM
