Question 2 a. For the constant head permeameter set-up shown in Figure Q2a, if the column diameter is 0.5 m determine 1.

[answerhappygod]

Question 2 A For The Constant Head Permeameter Set Up Shown In Figure Q2a If The Column Diameter Is 0 5 M Determine 1 1 (33.09 KiB) Viewed 11 times

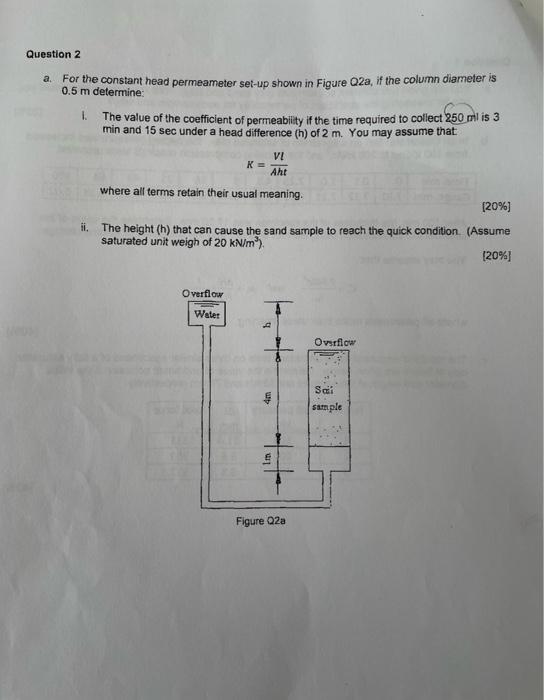

Question 2 a. For the constant head permeameter set-up shown in Figure Q2a, if the column diameter is 0.5 m determine 1. The value of the coefficient of permeability if the time required to collect 250 mil is 3 min and 15 sec under a head difference (h) of 2 m. You may assume that: VL KE Aht where all terms retain their usual meaning. (20%) i. The height (h) that can cause the sand sample to reach the quick condition (Assume saturated unit weigh of 20 kN/m) (20%) Overflow Water Ovsiflow Sai sample Figure 02a
