Problem 3 (10 pts) For the series/parallel pipe system shown, determine the total head loss in the system if the dischar

[answerhappygod]

Problem 3 10 Pts For The Series Parallel Pipe System Shown Determine The Total Head Loss In The System If The Dischar 1 (44.52 KiB) Viewed 28 times

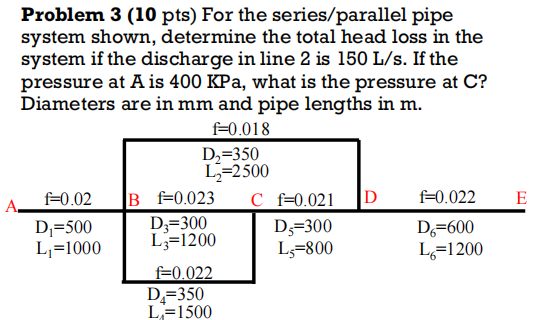

Problem 3 (10 pts) For the series/parallel pipe system shown, determine the total head loss in the system if the discharge in line 2 is 150 L/s. If the pressure at A is 400 KPa, what is the pressure at C? Diameters are in mm and pipe lengths in m. f=0.018 D2=350 L;=2500 f=0.02 B f=0.023 Cf=0.021 D f=0.022 D=500 Dz=300 Dz=300 D =600 Li=1000 L3=1200 L3=800 L=1200 f=0.022 D=350 L=1500 E
