Asap need right complete solution
Asap need right complete solution

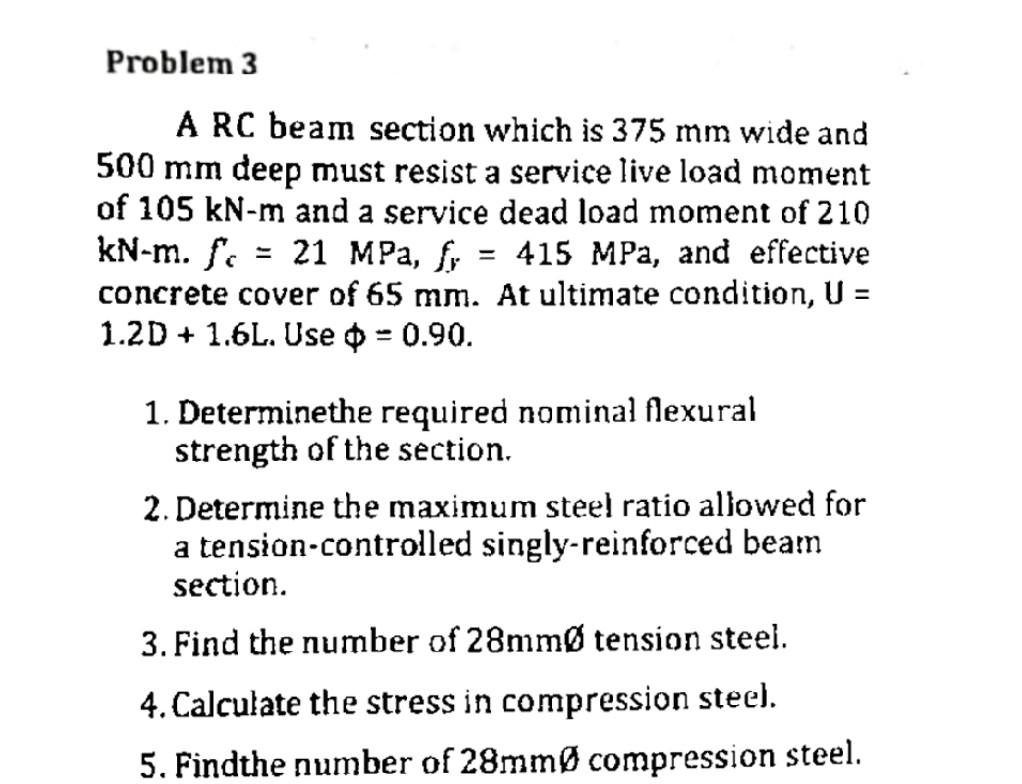

Problem 3 A RC beam section which is 375 mm wide and 500 mm deep must resist a service live load moment of 105 kN-m and a service dead load moment of 210 kN-m. fs = 21 MPa, fi = 415 MPa, and effective concrete cover of 65 mm. At ultimate condition, U = 1.2D + 1.6L. Use $ - 0.90. - 1. Determinethe required nominal flexural strength of the section. 2. Determine the maximum steel ratio allowed for a tension-controlled singly-reinforced beam section. 3. Find the number of 28mm tension steel. 4. Calculate the stress in compression steel. 5. Findthe number of 28mm compression steel.
Problem 3 A RC beam section which is 375 mm wide and 500 mm deep must resist a service live load moment of 105 kN-m and a service dead load moment of 210 kN-m. fs = 21 MPa, fi = 415 MPa, and effective concrete cover of 65 mm. At ultimate condition, U = 1.2D + 1.6L. Use $ - 0.90. - 1. Determinethe required nominal flexural strength of the section. 2. Determine the maximum steel ratio allowed for a tension-controlled singly-reinforced beam section. 3. Find the number of 28mm tension steel. 4. Calculate the stress in compression steel. 5. Findthe number of 28mm compression steel.
