- Area Moment Method A 113 8 Kn B 131 8 Kn C 138 1 Kn D 83 11 Kn What Is The Vertical Reaction At B A 214 76 Kn B 2 1 (63.84 KiB) Viewed 15 times
b. 131.8 kN
c. 138.1 kN
d. 83.11 kN
What is the vertical reaction at B?
a. 214.76 kN
b. 241.76 kN
c. 142.76 kN
d. 176.42 kN
What is the vertical reaction at C?
a. 8.946 kN upward
b. 8.946 kN downward
c. 89.46 kN upward
d. 89.46 kN downward
What is the deflection at midspan AB?
a. 7.77 mm downwards
b. 3.33 mm upwards
c. 2.22 mm downwards
d. 6.66 mm upwards

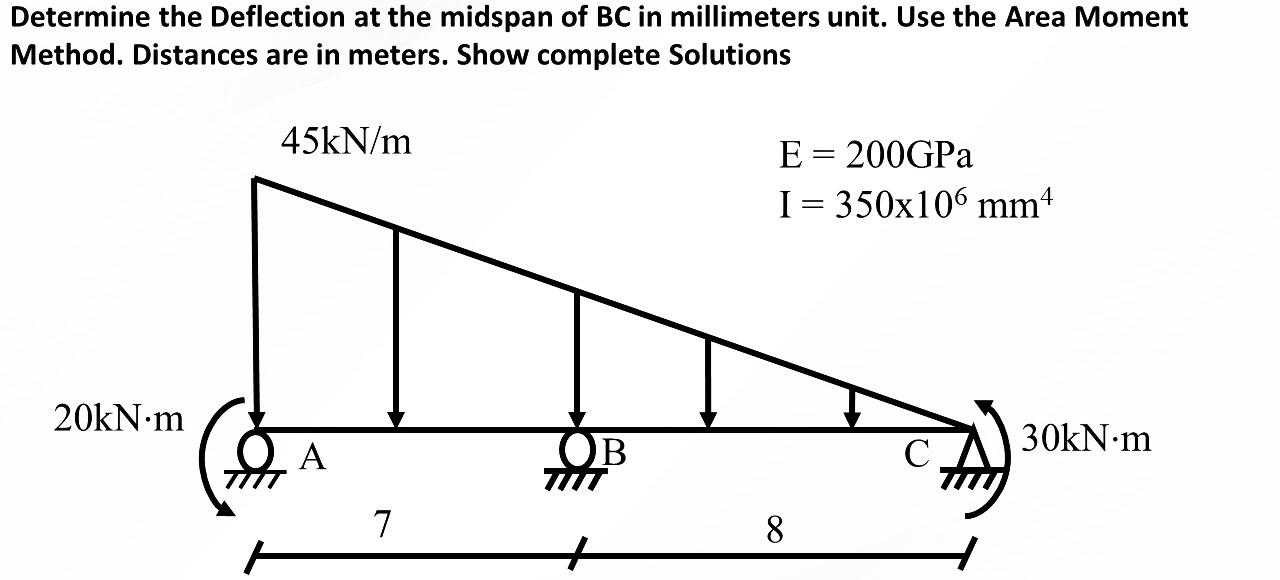

Determine the Deflection at the midspan of BC in millimeters unit. Use the Area Moment Method. Distances are in meters. Show complete Solutions 45kN/m = E = 200GPa I = 350x106 mm4 20kN•m 30kN·m A OB 7 8
