A Structural beam in a building it subjected to loading that can
be represented as simply support beam as shown.
Draw the FBD of the entire beam. Using the section method: Draw
the internal shear force and internal bending moment diagrams for
the beam. Remember to use the positive sign convention.

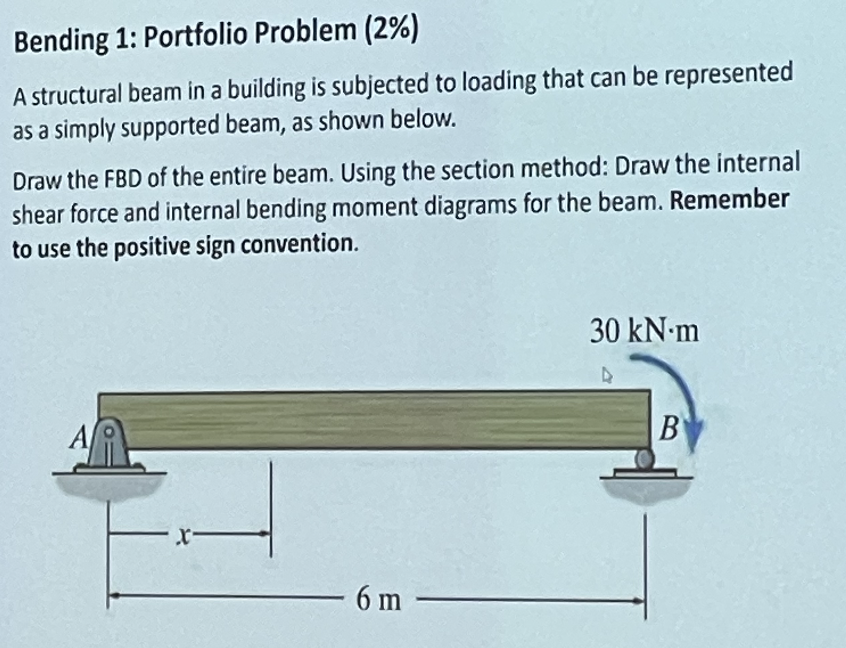

A Structural Beam In A Building It Subjected To Loading That Can Be Represented As Simply Support Beam As Shown Draw Th 1 (844.46 KiB) Viewed 15 times
Bending 1: Portfolio Problem (2%) A structural beam in a building is subjected to loading that can be represented as a simply supported beam, as shown below. Draw the FBD of the entire beam. Using the section method: Draw the internal shear force and internal bending moment diagrams for the beam. Remember to use the positive sign convention. 30 kN.m AN B X - 6 m -
