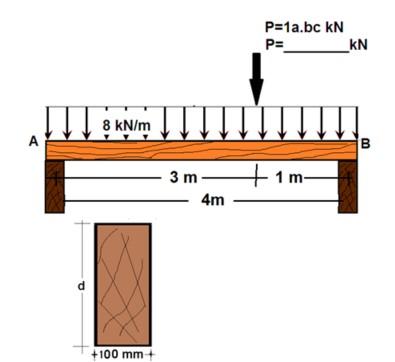

A 4m simply supported beam carries a uniform load of 8 kN/m and
a concentrated load of P=13.13 kN
at 3m from left support as shown. If the base is 100 mm
and the allowable stress is12 MPa. Determine the following:
a. The Reaction at A is RA= _________
kN
b. The maximum moment
Mmax=________kN-m
c. The minimum Depth
dmin= ________
mm
A 4m Simply Supported Beam Carries A Uniform Load Of 8 Kn M And A Concentrated Load Of P 13 13 Kn At 3m From Left Suppor 1 (14.32 KiB) Viewed 20 times
P=1a.bc kN P= _kN 8 kN/m А B 3 m +1 m 4m d +100 mm +
