Problem 5(20 pts) For the pipe networks shown, determine the final discharge in each of the pipes in L/s. Stop the itera

[answerhappygod]

Problem 5 20 Pts For The Pipe Networks Shown Determine The Final Discharge In Each Of The Pipes In L S Stop The Itera 1 (81.88 KiB) Viewed 14 times

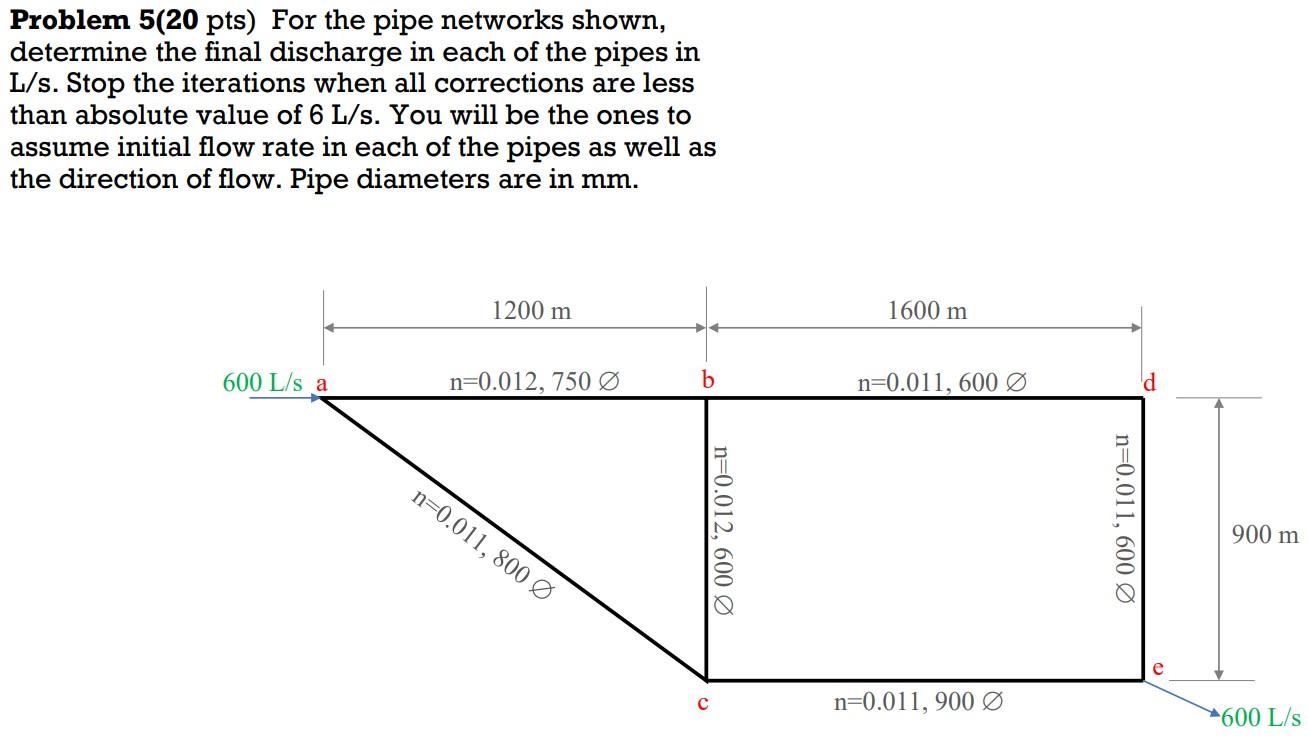

Problem 5(20 pts) For the pipe networks shown, determine the final discharge in each of the pipes in L/s. Stop the iterations when all corrections are less than absolute value of 6 L/s. You will be the ones to assume initial flow rate in each of the pipes as well as the direction of flow. Pipe diameters are in mm. 1200 m 1600 m 600 L/s a n=0.012, 750 8 b n=0.011, 600 8 d n=0.011, 800 0 n=0.012, 600 8 n=0.011, 600 8 900 m с n=0.011, 900 8 -600 L/s
