Draw the shear and moment diagram of the
beams loaded as shown. (Show the values
of shears and moments on their diagram for each beam,
Reactions V-diag, M
diag)
P = 13.13 kN

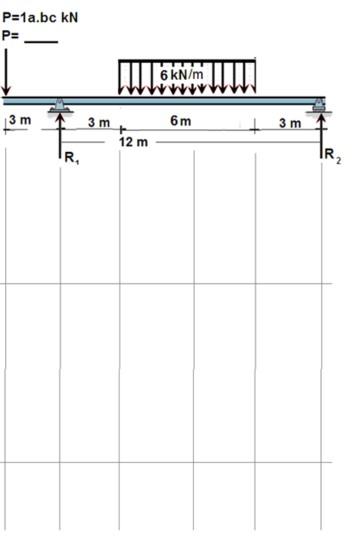

Draw The Shear And Moment Diagram Of The Beams Loaded As Shown Show The Values Of Shears And Moments On Their Diagra 1 (14.6 KiB) Viewed 9 times
P=1a.bc kN P= 6 kN/m UM 3 m 3 m 6m 3 m 12 m R R
