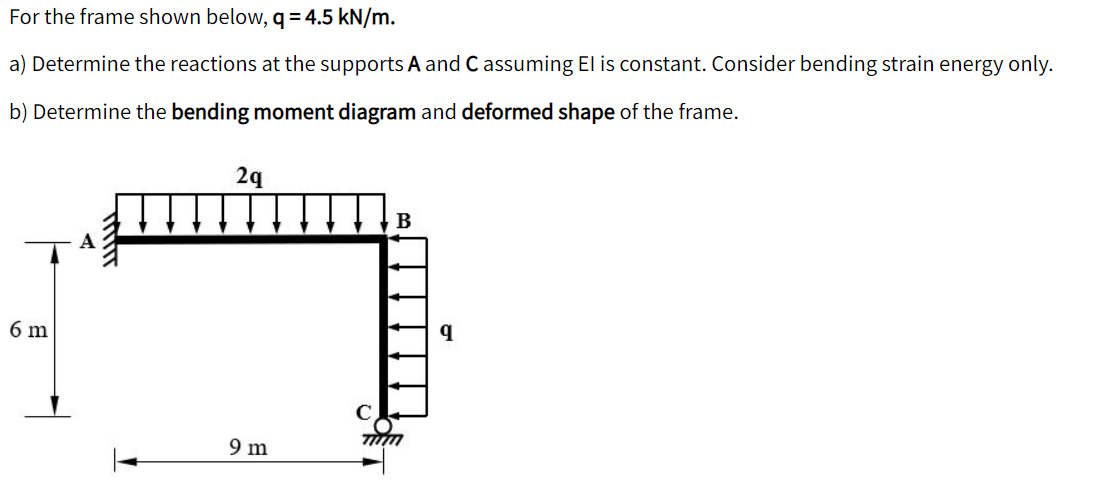

For the frame shown below, q = 4.5 kN/m. a) Determine the reactions at the supports A and C assuming El is constant. Consider bending strain energy only. b) Determine the bending moment diagram and deformed shape of the frame. 2q B 6 m 9 с 9 m TIM
Part a) Task 3: Fill in with absolute values. Vertical reaction at C, RC = KN Vertical reaction at A, VA= KN Hortizontal reaction at A, HA = KN Moment reaction at A, MA= = kNm
Part b) Task 2: What is the bending moment at B (absolute value)? kNm What is the local maximum or minimum bending moment between A and B (absolute value)? kNm What distance from B does the local maximum or minimum bending moment between A and B occur? m What distance from B does the contraflexure point closest to B occur? What distance from B does the contraflexure point furthest from B occur? m
