For the beam shown below, F = 45 kN and L = 7.5 m. a) Determine the reactions at the supports A, B and C assuming El is

Post by answerhappygod »

For The Beam Shown Below F 45 Kn And L 7 5 M A Determine The Reactions At The Supports A B And C Assuming El Is 1
For The Beam Shown Below F 45 Kn And L 7 5 M A Determine The Reactions At The Supports A B And C Assuming El Is 1 (49.62 KiB) Viewed 13 times

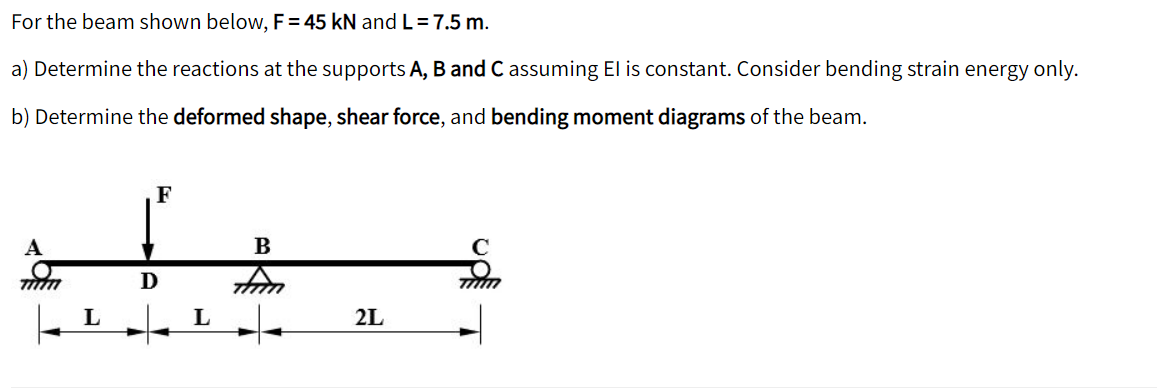

For the beam shown below, F = 45 kN and L = 7.5 m. a) Determine the reactions at the supports A, B and C assuming El is constant. Consider bending strain energy only. b) Determine the deformed shape, shear force, and bending moment diagrams of the beam. F A B TTTTTT D than TIITTI L L 2L
Part b) Task 3: What is the bending moment at D (absolute value)? kNm What is the bending moment at B (absolute value)? kNm What distance to the left of B does the contraflexure point occur? m
