For The Beam Shown Below F 45 Kn And L 7 5 M A Determine The Reactions At The Supports A B And C Assuming El Is 1 (49.62 KiB) Viewed 13 times

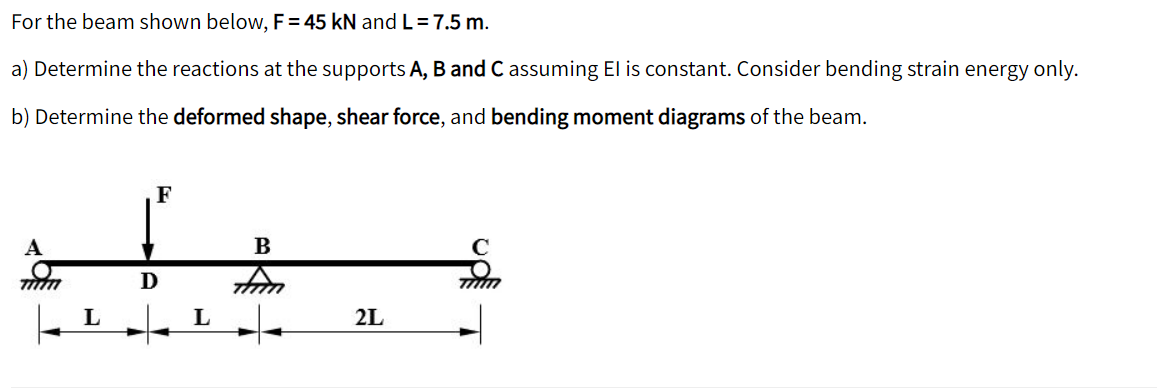

For the beam shown below, F = 45 kN and L = 7.5 m. a) Determine the reactions at the supports A, B and C assuming El is constant. Consider bending strain energy only. b) Determine the deformed shape, shear force, and bending moment diagrams of the beam. F A B TTTTTT D than TIITTI L L 2L
Part a) Task 2: Release the roller support at C Assuming Ra, Rg and Rc are all upward. Determine the vertical reaction at A in terms of the vertical reaction at C (RC): RA= + RC KN Determine the vertical reaction at B in terms of the vertical reaction at C (Rc): RB = + RC KN Determine the horizontal reaction at B: HB = KN O N/A
