Q1b) The solid shaft is made of material that has a shear modulus of G=12x10% Pa. Determine the angle of rotation of gea

Post by answerhappygod »

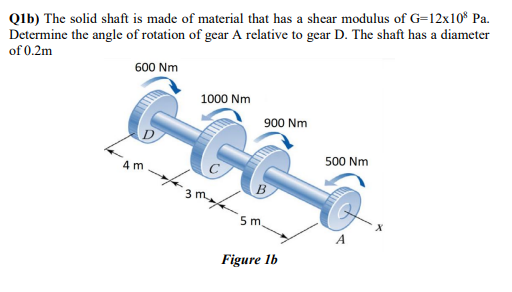

Q1b The Solid Shaft Is Made Of Material That Has A Shear Modulus Of G 12x10 Pa Determine The Angle Of Rotation Of Gea 1
Q1b The Solid Shaft Is Made Of Material That Has A Shear Modulus Of G 12x10 Pa Determine The Angle Of Rotation Of Gea 1 (71.86 KiB) Viewed 17 times
Q1b) The solid shaft is made of material that has a shear modulus of G=12x10% Pa. Determine the angle of rotation of gear A relative to gear D. The shaft has a diameter of 0.2m 600 Nm 1000 Nm 900 Nm 4 m 500 Nm 3 m B 5 m A Figure 16
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
